ZMODO NEW 4CH Camera System 3.6mm Lens No Hard Drive
- Same Day Gurantee! (Ships same business day if ordered by 1pm CST)
- In Stock! (Ships w/in 24 hours of order)
- Ships in 5-7 days (This is a customized kit requiring addional build time.)
- Ships in 4-6 weeks (These are typically back-ordered items.)
Our friendly staff is here to help!
John
Why Buy From ZmodoDirect ?
- Communication: We're real people you can call and talk to!
- Trust: We're leaders in the Home Surveilance Business.
- Privacy: We hate Spam, and so won't sell your info.
- Secure: Your orders are processed on a secure server w/ SSL encryption.
Browse Other Options
Product Description
The PKD-DK4213 ZMODO NEW 4 Channel 3.6mm lens Camera System is perfect for any home or small business. This kit comes with a ZMD-DD-SBN4 4 channel fully integrated stand-alone DVR that offers the highest resolution with D1 resolution at 120 FPS. Remote access this DVR from your smartphone or other device from anywhere and keep an eye on things when you are away. Paired with this outstanding DVR are 4 ZMD-CBR-BCS13NM 1/4" Color CMOS Silver bullet cameras. These weatherproof cameras have night vision up to 50' use a 3.6mm lens. This kit is a great and affordable system for any home or small business.
Benefits
- Clear Video Feed - D1 Resolution with the DVR
- Remote Access - View live video from smartphone or tablet
- Silver Bullet Cameras - Weatherproof and nightvision CMOS cameras
Zmodo PKD-DK4213 Specs

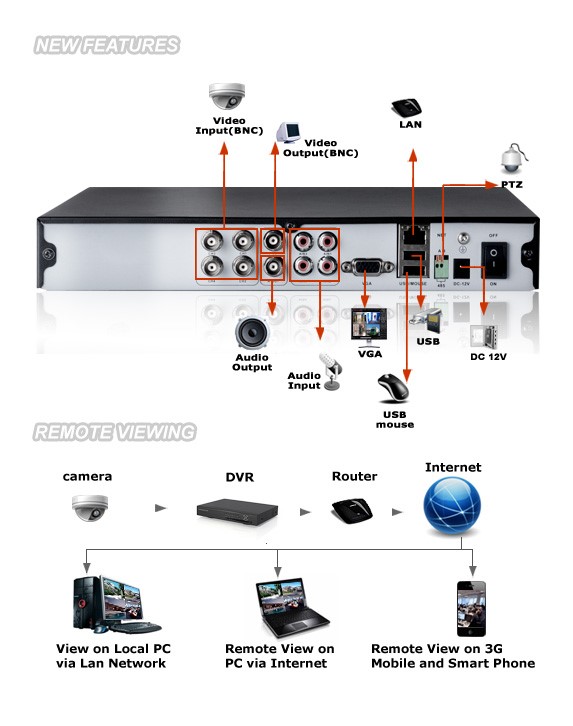

| Model | ZMD-DD-SBN4 -StandAlone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC 4-Channel Input / BNC 1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input / BNC 1-Channel Output |
| Display Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Display Resolution | NTSC: D1 (704 x 480) / PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Recording Pack Time | 15/30/45/60mins Selectable |
| Simplex / Duplex /Triplex / Pentaplex | Pentaplex |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| Playback Mode | Normal Play /Fast Forward /Fast Rewind/ Frame by Frame |
| USB | USB Backup / USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1000mA |
| Dimension | 300mm (W) x 220mm (D) x 47mm (H) |

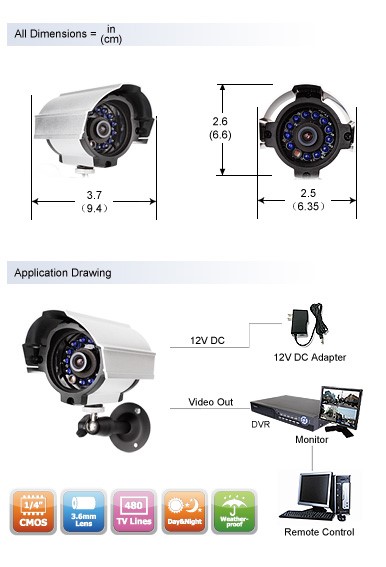

| Model | ZMD-CBR-BCS13NM(CM-C11613SV)- Color Outdoor IR Security Camera |
| Image Sensor | 1/4" Color CMOS |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V) |
| Horizontal Resolution | 480 TV-Lines |
| Lens | 3.6mm |
| Number of IR LEDs | 12 LEDs |
| Infrared Illumination (Night Vision) | up to 30ft(10~15m) |
| Minimum Illumination | 0.0 Lux |
| S/N Ratio | > 45.6dB |
| Video Output | 1.0Vp-p, 75ohms |
| Operating Temperature | 14°F~122°F / -10°C ~50°C |
| Weatherproof | Yes |
| Power | 12V DC |
| Power Consumption | IR on Max 150mA |
| Dimensions (W x D x H) | 3.7" x 2.6" x 2.5 " |
| Gross Weight | 0.5lbs |
| Material | Metal Shell |
Features
DVR Features- Embedded Linux OS
- H.264 Hardware Compression
- No HD Installed
- Video Input / Output: BNC 4/ BNC 2
- Audio Input / Output: RCA 4/RCA 2
- Two Type Video Out: TV Monitor BNC Output and PC Monitor VGA Output
- Signal System: NTSC / PAL
- Display: 120 fps
- Record: 120 fps
- Recording Mode: Continuous/ Motion Detection/ Time Scheduled
- Remote Access: Internet Explorer or Netviewer Software
- PTZ via RS-485 Port
- Support Remote View via Smart Phone & 3G Mobile with each of those systems below:
b) Google Android™
c) Blackberry™ OS V4.6
d) Windows Mobile™ Pro 5.0 & 6.1
e) Symbian™ S60 3rd & S60 5th
Camera Features
- 1/4" Color CMOS Image Sensor
- 480 TV Lines, Horizontal
- 3.6mm Lens
- Signal: NTSC
- Iris: Auto
- Night Vision Min. Light: 0 Lux (IR On)
- IR Irradiation Distance: up to 50'
- Weatherproof: Yes
- Mount: Ceiling or Wall
- Video Connector: BNC
- Power Connector: RCA 12V DC
Technical Specs

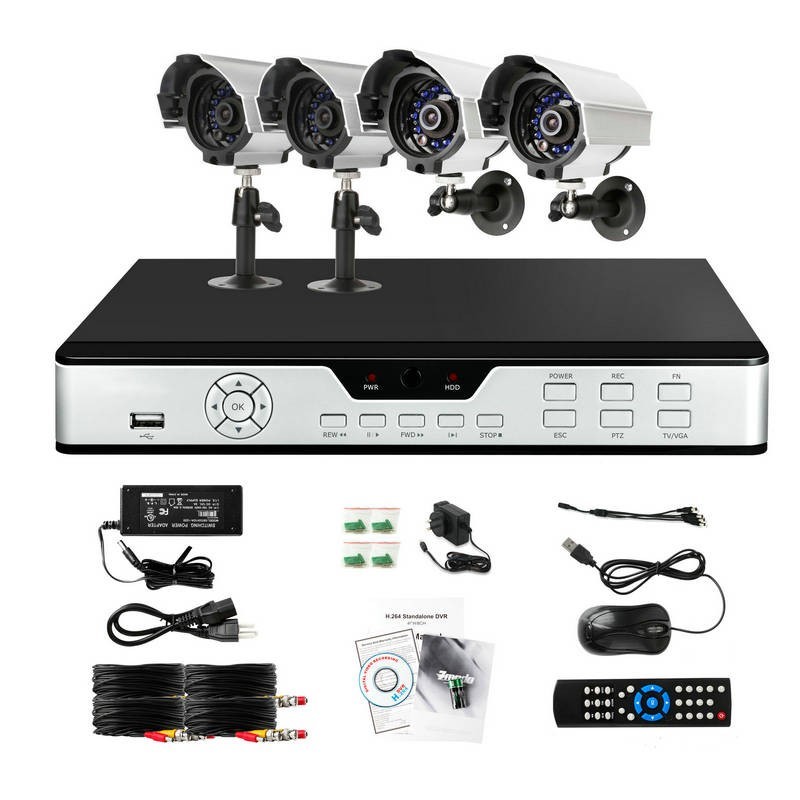

Included With: PKD-DK4213
Includes:
(1) ZMD-DD-SBN4 DVR System
(4) ZMD-CBR-BCS13NM(CM-C11613SV) Color IR Outdoor Security Cameras
(4) 60ft Video + Power All-in-one Cable for Security Cameras
(1) 12V/1500mA Power Supply for Cameras
(1) 1-4 Splitter Cable for Cameras
(1) Power Supply for DVR
(1) IR Remote Control & Mouse
(1) User's Manual
(1) CD Software
