Product Description
The ZMD-KDF8-BARCZ4ZN kit is a great system for any home or business. It comes with an 8 channel DVR and a 4 pack of 3.6mm lense CMOS cameras with cables. You are receiving the best in quality picture and durability with the cameras included in this kit. The 8 channel DVR allows for remote viewing (able to watch on your smartphone or any 3G mobile device) so you can see whats going on at any time. This DVR is not equipped with a hardrive but you do have the option of adding a 500gb or 1tb hardrive, so you can have days of video saved for your viewing. The cameras provided with this kit are able to see up to 60' at night with the 24 built in IR LEDs. Weatherproof and highly durable, these cameras can be outside and are able to be in most conditions.
Benefit
- Durability - The cameras are highly durable with a aluminum finish and highly weather resistant.
- Picture Quality - The 3.6mm lens with 24 IR LEDs offer great picture at a low price.
- Remote Viewing - Can be programmed to be viewed on Smartphone or any device capable.
Zmodo ZMD-KDF8-BARCZ4ZN Specs
Features

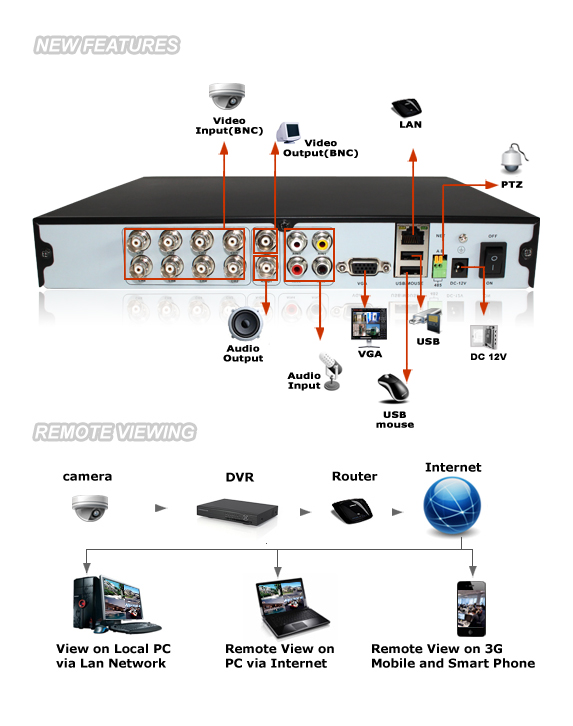

DVR Features
- H.264 Hardware Compression
- Signal System: NTSC / PAL
- Video Input / Output: BNC 8/BNC 1
- Video Output: VGA
- Audio Input / Output: RCA 4/BNC 1
- Recording Mode: Continuous/ Scheduled/ Motion
- Remote Access: LAN or IE Browser
- Supports Remote View via smart phone & 3G Mobile with each of these systems:
a) Android™
b) iPhone® & iPad® IOS
c) Symbian™
d) Windows Mobile®
Camera Features
- 1/4" Color CMOS Image Sensor
- 480 TV Lines, Horizontal
- 3.6mm Lens
- Signal: NTSC
- Night Vision Min. Light: 0 Lux (IR On)
- IR Irradiation Distance: up to 60'
- Operation Temperature: 14F~122F
- Weatherproof: Yes
Technical Specs
| Model | ZMD-DD-SAN8 - 8CH H.264 StandAlone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC 8-Channel Input /BNC 1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input /BNC 1-Channel Output |
| Display Frame Rate | NTSC: 240fps@D1/ PAL: 200fps@D1 |
| Display Resolution | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 56 fps @ D1 /120 fps @ HD1 / 240 fps @ CIF/PAL: 48 fps @ D1 /100 fps @ HD1/ 200 fps @ CIF |
| Record Resolution | Selectable: NTSC: D1(704*480), HD1(704*240), CIF(352*240)/PAL: D1(704*576), HD1(704*288), CIF(352*288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Recording Pack Time | 15/30/45/60mins Selectable |
| Network Function | Support Live View with IE & Mobile Phone |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| USB | USB Backup/USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1200mA |
| Dimension | 11.4 "(W) x 9.1" (D) x 1.65"(H) |

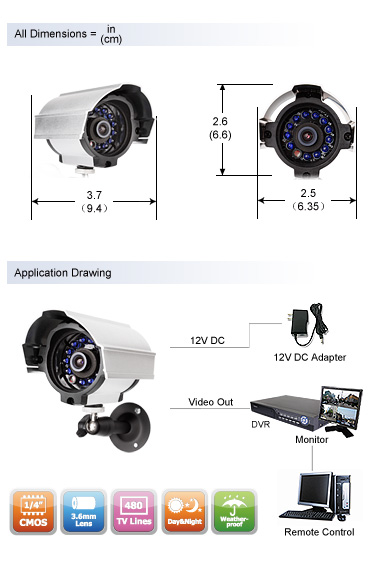

| Model | ZMD-CBR-BCS13NM(CM-C11613SV)- Color Outdoor IR Security Camera |
| Image Sensor | 1/4" Color CMOS |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V) |
| Horizontal Resolution | 480 TV-Lines |
| Lens | 3.6mm |
| Number of IR LEDs | 12 LEDs |
| Infrared Illumination (Night Vision) | up to 30ft(10~15m) |
| Minimum Illumination | 0.0 Lux |
| S/N Ratio | > 45.6dB |
| Video Output | 1.0Vp-p, 75ohms |
| Operating Temperature | 14°F~122°F / -10°C ~50°C |
| Weatherproof | Yes |
| Power | 12V DC |
| Power Consumption | IR on Max 150mA |
| Dimensions (W x D x H) | 3.7" x 2.6" x 2.5 " |
| Gross Weight | 0.5lbs |
| Material | Metal Shell |
Included With: ZMD-KDF8-BARCZ4ZN
Package Includes
- (1) DVR-H9118V Security DVR, Hard Drive is not Included
- (4) CM-C11613SV Color IR Outdoor Security Cameras
- (4) 60' Video + Power All-in-one Cables for Security Cameras
- (1) 12V 1.5A 4 Port Power Supply for Security Cameras
- (1) IR Remote Control
- (1) User's Manual
