Product Description

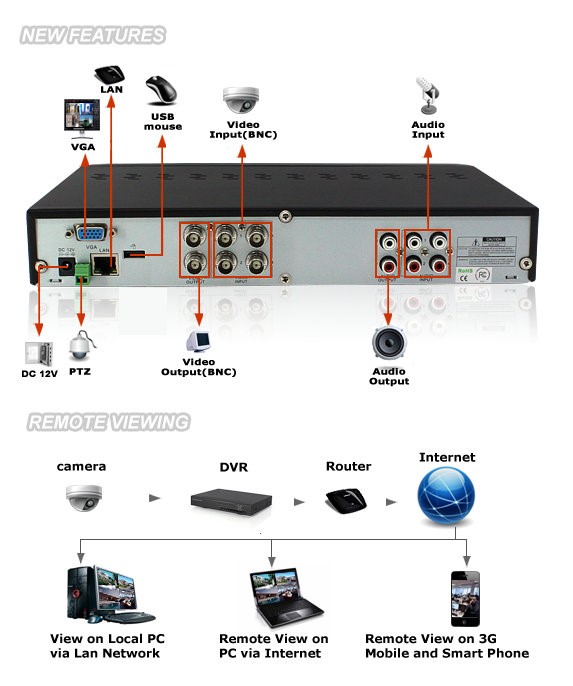

The PKD-DK4216 ZMODO 4 Channel CCTV Security DVR Day Night Weatherproof Camera System is perfect for any home or small business. This kit comes with a ZMD-DD-SBN4 4 channel fully integrated stand alone DVR that offers the highest resolution with D1 resolution at 120 FPS. Remote access this DVR from your smartphone or other device from anywhere and keep an eye on things when you are away. Paired with this outstanding DVR are 4 1/4" Color CMOS bullet cameras. These weatherproof cameras have nightvision up to 30' use a 6mm lens. This kit is a great and affordable system for any home or small business.
Benefits
- High Resolution - D1 Resolution in the DVR
- Remote Access - View activity on your smartphone or tablet
- Weatherproof Cameras - Always feel safe with the sturdy CMOS bullet cameras
Zmodo PKD-DK4216 Specs
| Model | ZMD-DD-SBN4 - Full D1 4CH H.264 DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC 4-Channel Input / BNC 1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input / BNC 1-Channel Output |
| Display Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Display Resolution | NTSC: D1 (704 x 480) / PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Recording Pack Time | 15/30/45/60mins Selectable |
| Simplex / Duplex /Triplex / Pentaplex | Pentaplex |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| Playback Mode | Normal Play /Fast Forward /Fast Rewind/ Frame by Frame |
| USB | USB Backup / USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1000mA |
| Dimension | 300mm (W) x 220mm (D) x 47mm (H) |

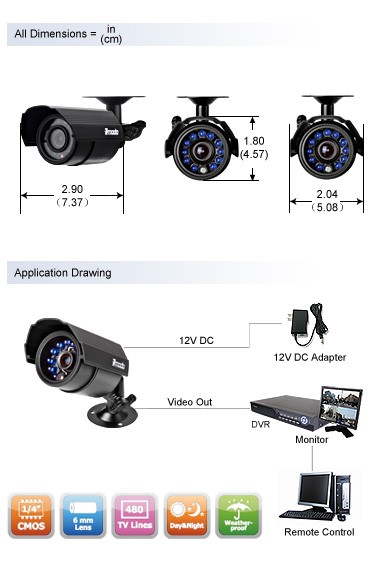

| Model | ZMD-CBR-BAS16NM(CM-C21606BK)- Color IR Bullet Camera |
| Image Sensor | 1/4" Color CMOS |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V) |
| Horizontal Resolution | 480 TV-Lines |
| Lens | 6mm |
| Number of IR LEDs | 11 LEDs |
| Infrared Illumination (Night Vision) | up to 30ft(10~15m) |
| Minimum Illumination | 0.0 Lux |
| S/N Ratio | 48dB |
| Video Output | 1.0Vp-p, 75ohms |
| Weatherproof | Yes |
| Operating Temperature | 14°F~122°F / -10°C ~50°C |
| Power | 12V DC |
| Dimensions (W x D x H) | 2.9" x 2" x 1.8" |
| Gross Weight | 0.38 lbs |
| Material | Metal Shell |
Features
DVR Features- Embedded Linux OS
- H.264 Hardware Compression
- No Hard Drive is Installed and Configured
- Supports up to 2TB HD
- Video Input / Output: BNC 4/BNC 1
- Audio Input / Output: RCA 4/BNC1
- Other Video Output: VGA
- Signal System: NTSC / PAL
- Display: 120 fps
- Record: 120 fps
- Recording Mode: Continuous/ Scheduled/ Motion
- Display Mode: Each/ All/ Auto Switch/ Hidden
- Playback Search: Time & Date, Event List
- Network: RJ45 TCP/IP or DDNS
- Remote Access: LAN or IE Browser
- IR Remote Control
- Support Remote View via 3G Mobile
- PTZ via RS-485 Port
- Plug-n-Play
- 1/4" Color CMOS Image Sensor
- 480 TV Lines, Horizontal
- 6mm Lens
- Signal: NTSC
- Night Vision Min. Light: 0 Lux (IR On)
- IR Irradiation Distance: up to 30'
- Operation Temperature: 14F~122F
- Weatherproof: Yes
- Power: 12V DC
- Mount: Ceiling or Wall
- Video Connector: BNC
- Power Connector: RCA 12V DC
- Color: Silver or Black
Technical Specs
Included With: PKD-DK4216
Package Includes
(1) ZMD-DD-SBN4 DVR
(4) ZMD-CBR-BAS16NM(CM-C21606BK) Color IR Security Outdoor Cameras
(4) 60ft Surveillance Video + Power All-in-one Cable
(1) 12V/1.5A Power Supply for Cameras
(1) 1-4 Splitter Cable for Cameras
(1) Power Supply for Security DVR
(1) User's Manual
(1) IR Remote Control & Mouse
(1) CD Software
**Hard drive is not included
