Our new IP NVR comes complete with 1TB hard drive installed and configured. This new HD Network IP Video recorder will work only with our new 720p wireless or wired IP surveillance cameras. The best option is that you can customize your system with both wired or wireless up to 8 cameras. System will hold around 1 weeks with of HD recordings on all 8 channels. This system is built for our high end camera customers. If you are looking for analog kits please see our 8 channel standard DVR Kits. You can host this NVR from anywhere in the world. If you have a store with 8 cameras you can keep the NVR in your home and stream live video directly to it offsite. This means you never have to worry about stolen video footage. Please contact our sales team for more info and to custom build you the right system. When security matters most, Zmodo direct is here to serve your needs.

Note: NVR can only work with our HD H.264 720P series IP cameras.

Function Summary of NVR

This NVR’s features:

1. Professional hardware device, not based on PC or industrial PC, users are more easy to use;
2. Embedded operation system, low power consumption chip, long-term stability operation;

1. Built-in Web-server, an easy to use interface allowing the operator to configure the setting through web browser;
2. Allow to add and configure max 8 channels of 720P;
3. Support max 2T hard disk;
4. Built-in DDNS by which operator can remotely access to configured the NVR.
5. We provide free client software, which can be used to play back and manage the NVR.

Package

1. NVR •_ö1TB Installed•_ä * 1pcs
2. Power adapter(DC12V) * 1pcs
3. CD * 1pcs
4. Network cable * 1pcs
5. Accessory * 1pcs

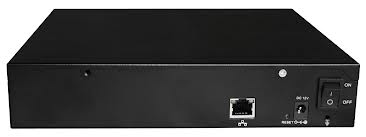

Appearance and interface

1. The device has three status indicator lights: red, green and blue in the front;
2. Please use the default power adapter which is 12V and provided by the manufacturer;
3. If forget user name or password, or did wrong settings; please press the reset button for 5 seconds, and then all go back to their default settings(default user: admin; default pw: 123456);
4. Wired network interface.

Note:

1. When connect to the power, the red LED will be on, if not, please check the power adapter;
2. Green LED indicates the working status for NVR. When it worked properly, the indicator will be always on;
3. Blue LED indicates the working status for hard disk. After found the hard disk, it will be always on; when read-write hard disk it is flashing.

NVR Basic Parameters

• Chipset: HI3515
• Support 8 channels (Max.) 720p IP Camera for recording (Bit rate is 4M/ch•_ä
• Support 4 channels (Max.) playback simultaneously
• Support 1 hard disk
• Max. Capacity for hard disk: 2TB
• Dimension: 221*212*45mm
• Weight: 0.7kg•_öwithout hard disk•_ä
• Input Power: 12V, 2A
• Power: Max. 15W
