8 Camera Surveillance System & 8 Sony IR CCD Black Cameras 500GB
(
1 product review
)
- Same Day Gurantee! (Ships same business day if ordered by 1pm CST)
- In Stock! (Ships w/in 24 hours of order)
- Ships in 5-7 days (This is a customized kit requiring addional build time.)
- Ships in 4-6 weeks (These are typically back-ordered items.)
Our friendly staff is here to help!
John
Why Buy From ZmodoDirect ?
- Communication: We're real people you can call and talk to!
- Trust: We're leaders in the Home Surveilance Business.
- Privacy: We hate Spam, and so won't sell your info.
- Secure: Your orders are processed on a secure server w/ SSL encryption.
Browse Other Options
Product Description
This 8ch DVR kit is fully integrated, with real time recording and installed with 500gb of memory. Remotely view your DVR via smartphone and 3G mobile technology. Customize your DVR settings with options such as scheduled recording, continuous recording, motion detected recording (meaning the DVR will only record when something out of the ordinary is setting off the motion detector), or a combination of modes can be selected. The cameras provided in this kit offer crystal color video in the daytime with the 1/4" Sony CCD image sensor, and great black and white video in the darkness with the 24 built in IR LEDS giving you up to 65ft of coverage.
Benefits
- Plug n Play - The DVR is so simple to use all you do is plug it up and play.
- Durability - The weatherproof capability of the cameras allows for no worries to have them outside.
- 8 Channels - Allows for up to 8 cameras to be seen at one time.
Zmodo ZMD-DD-SAN8-500GB & ZMD-CNR-BBB23NM Specs
Features
DVR Features- Plug-n-Play
- Record: 240 fps
- Display: 240 fps
- 500GB HD Installed and Configured
- Embedded Linux OS
- IR Remote Control
- PTZ via RS-485 Port
- Signal System: NTSC / PAL
- H.264 Hardware Compression
- Video Input / Output: BNC 8/BNC 1
- Video Output: VGA
- Audio Input / Output: RCA 4/BNC 1
- Recording Mode: Continuous/ Scheduled/ Motion
- Display Mode: Each/ All/ Auto Switch/ Hidden
- Playback Search: Time & Date, Event List
- Network:RJ45 TCP/IP or DDNS
- Remote Access: LAN or IE Browser
- Support Remote View via 3G Mobile
Camera Features
- 1/4" Sony CCD Image Sensor
- 420 TV Lines, Horizontal
- 3.6mm Lens
- Signal: NTSC
- Night Vision Min. Light: 0 Lux (IR On)
- IR Irradiation Distance: up to 65'
- Operation Temperature: -25°F~122°F
- Weatherproof: Yes
- Power: 12V DC
- Mount: Wall
- Video Connector: BNC
- Power Connector: RCA 12V DC
Technical Specs
| Model | ZMD-DD-SAN8 - 8CH H.264 StandAlone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC 8-Channel Input /BNC 1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input /BNC 1-Channel Output |
| Display Frame Rate | NTSC: 240fps@D1/ PAL: 200fps@D1 |
| Display Resolution | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 56 fps @ D1 /120 fps @ HD1 / 240 fps @ CIF/PAL: 48 fps @ D1 /100 fps @ HD1/ 200 fps @ CIF |
| Record Resolution | Selectable: NTSC: D1(704*480), HD1(704*240), CIF(352*240)/PAL: D1(704*576), HD1(704*288), CIF(352*288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Recording Pack Time | 15/30/45/60mins Selectable |
| Network Function | Support Live View with IE & Mobile Phone |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| USB | USB Backup/USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1200mA |
| Dimension | 11.4 "(W) x 9.1" (D) x 1.65"(H) |
| Model | ZMD-CNR-BBB23NM-Bullet Camera |
| Image Sensor | 1/4" Sony Color CCD |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 512 (H) x 492 (V) / PAL: 512 (H) x 582 (V) |
| Horizontal Resolution | 420 TV-Lines |
| Lens | 3.6mm |
| Number of IR LEDs | 24 PCS |
| Infrared Illumination (Night Vision) | up to 65ft (15~20m) |
| Minimum Illumination | 0 Lux (IR On) |
| S/N Ratio | ≥ 48dB |
| Video Output | 1.0Vp-p, 75ohms (BNC) |
| Weatherproof | Yes |
| Operating Temperature | 14°F~122°F / -10°C ~50°C |
| Power | 12V DC |

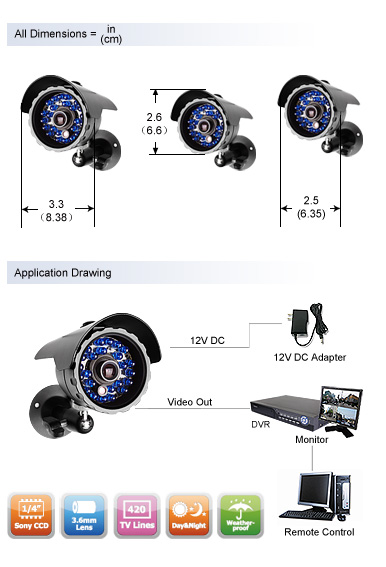

| Dimensions (W x D x H) | 3.3" x 2.5" x 2.6" |
| Gross Weight | 0.33 lbs |
| Material | Metal Shell |
Included With: KDF8-NARQZ8ZN-5G

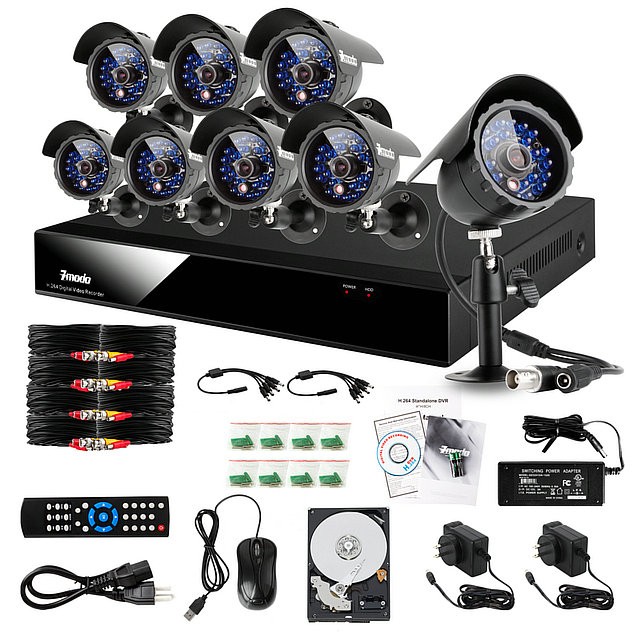

Package Includes
- (1) ZMD-DD-SAN8 8 Channel Security DVR
- (1) 500GB Hard Drive
- (8) ZMD-CNR-BBB23NM Outdoor IR Security Camera
- (8) 60ft CCTV Power + Video Cables for Security Cameras
- (2) 12V/1500mA Single Power Supply for Security Cameras
- (2) 1-4 Splitter Cable for Security Cameras
- (1) Power Supply for DVR
- (1) IR Remote Control & Mouse
- (1) User's Manual
- (1) CD Software
Warranty Information
Find Similar Products by Category
Product Reviews
-
Great System for the $$ - You'll probably need more cables
Posted by Greg on 22nd Aug 2013
Once you get over the hurdle of running all the cables (60/ft per cable is not as long as you think, so order some extras) you'll be glad you did it. Being able to remotely see your house via your phone is priceless.
I went with the CCD over the CMOS cameras, and so far am glad I did.
Good system for the $$.. I will likely upgrade to a 16CH system so I'll be able to add more cameras.
