4 Channel Real-Time DVR Security Camera System 1TB
- Same Day Gurantee! (Ships same business day if ordered by 1pm CST)
- In Stock! (Ships w/in 24 hours of order)
- Ships in 5-7 days (This is a customized kit requiring addional build time.)
- Ships in 4-6 weeks (These are typically back-ordered items.)
Our friendly staff is here to help!
John
Why Buy From ZmodoDirect ?
- Communication: We're real people you can call and talk to!
- Trust: We're leaders in the Home Surveilance Business.
- Privacy: We hate Spam, and so won't sell your info.
- Secure: Your orders are processed on a secure server w/ SSL encryption.
Browse Other Options
Product Description
The kit KDA4-CARBZ4ZN-1TB includes a 4 CH H.264 standalone DVR and four night vision outdoor security cameras. All cables and power supplies are included.
This 4 channel security DVR is a fully integrated, real time, and hardware based standalone digital video recorder. With video/audio input/output, motion detection, 3G live view, network access, PTZ camera control and USB2.0 backup, this 4CH security DVR is perfect for the home or small business.
These outdoor CCTV cameras in the kit delivers crystal color video image in daylight, as well as black and white video in darkness up to 65ft away with 24 built in IR LEDS, which are perfect for outdoor and indoor application for driveways, parking lots, halls, warehouses, and open office areas.
Benefits
- 4 Channels w/ 4 cameras - Great In-expensive starter kit.
- 1TB Hard Drive - Up to 4 weeks of continuous recording of all 4 cameras
- Weatherproof Cameras - Use the cameras indoors or outside.
Video & 3D Spin
Zmodo KDA4-CARBZ4ZN-1TB Specs
Features
DVR Features- H.264 Hardware Compression
- Video Input / Output: BNC 4/BNC 1
- Video Output: VGA
- Audio Input / Output: RCA 4/BNC 1
- Recording Mode: Continuous/Scheduled/Motion
- IR Remote Control
- PTZ via RS-485 Port
Supports Remote View via Smartphone & 3G Mobile with each of these systems:
- iPhone®
- Google Android™ 2.1 ~ 2.3
- Blackberry® 7
- Windows Mobile™ Pro 5.5 ~ 6.1
- Symbian® V3 & V5
- 1/4" Color CMOS Image Sensor
- 600 TV Lines, Horizontal
- 3.6mm Lens
- Signal: NTSC
- Night Vision Min. Light: 0 Lux (IR On)
- IR Irradiation Distance: up to 65'
- Operation Temperature: -25°F~122°F
- Weatherproof: Yes
- Power: 12V DC
- Mount: Ceiling or Wall
- Video Connector: BNC
- Power Connector: RCA 12V DC
Technical Specs
DVR Specs:| Model | ZMD-DD-SAN4 - Full D1 4CH StandAlone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC 4-Channel Input /BNC1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input /BNC1-Channel Output |
| Display Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Display Resolution | NTSC: D1 (704 x 480) / PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| Playback Mode | Normal Play /Fast Forward /Fast Rewind/ Frame by Frame |
| USB | USB Backup / USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1000mA |
| Dimension | 290mm (W) x 205mm (D) x 42mm (H) |

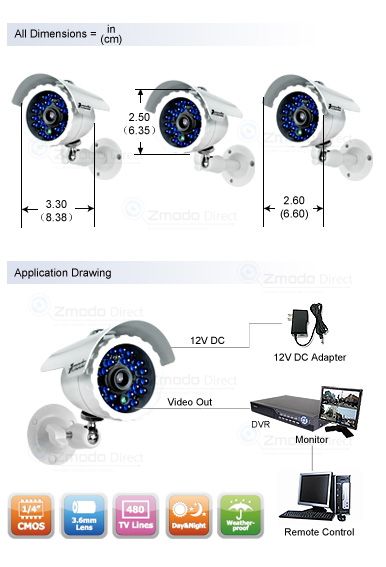

| Model | ZMD-CBR-BBS23NM(CM-C22623BG)- Color IR Bullet Camera |
| Image Sensor | 1/4" Color CMOS |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V) |
| Horizontal Resolution | 600 TV-Lines |
| Lens | 3.6mm |
| Number of IR LEDs | 24 LEDs |
| Infrared Illumination (Night Vision) | up to 65ft(15~20m) |
| Minimum Illumination | 0.0 Lux |
| S/N Ratio | 48dB |
| Video Output | 1.0Vp-p, 75ohms |
| Weatherproof | Yes |
| Operating Temperature | 14°F~122°F / -10°C ~50°C |
| Power | 12V DC |
| Power Consumption | IR on Max 150mA |
| Dimensions (W x D x H) | 3.3" x 2.5" x 2.6" |
| Gross Weight | 0.33 lbs |
| Material | Metal Shell |
Included With: KDA4-CARBZ4ZN-1TB
- (1) DVR-H9114V 4 Channel Security DVR, 1TB Hard Drive installed
- (4) ZMD-CBR-BBS23NM (CM-C22623BG) Outdoor IR Security Camera
- (4) 60ft CCTV Power + Video Cables for security cameras
- (1) 12V/1500mA Single Power Supply for security cameras
- (1) 1-4 Splitter Cable for security cameras
- (1) User's Manual
Supercedes SKU KDS4-BARBZ4ZN
Warranty Information
Find Similar Products by Category
Product Reviews
-
good and easy
Posted by Unknown on 13th Jun 2014
easy setup good price
-
Easy setup on this Zmodo camera system
Posted by Jeff on 3rd Sep 2013
You really can't beat these prices! I am considering buying a second one for my son. The image quality is the best I've seen in this price range. I highly recommend a Zmodo camera system to anyone who wants a high quality system at an affordable cost. I've been very happy with mine.
-
good quality. good price
Posted by Unknown on 26th Dec 2012
have not set it up yet just trying it out. but the picture quality is decent, the cords are long enough to run the wire all around the outside of the house.Can't wait to set it up. when the weather permits
-
Works right out of the box!
Posted by Unknown on 22nd Nov 2012
With quick shipping I got in two days. Opened the box and it was very simple to hookup and use. hooking to the net was very simple with their online step by step insructions. Cameras are very clear. Good for the money.
-
good value for the money
Posted by Brandy on 3rd Oct 2012
I've put in a lot of these systems, this one I got for home. The manuals could use more information. After reading it I thought I had to buy a hard drive to my shock. And I don't think this site sells a controller with alarm inputs, but the manual spend inordinate time telling you about them. I was confused. The day time color is ok for a CMOS cameras. You can get it to record on video motion detection, continuous, or alarm if they had that. I like ones that allow you to mix them. like record slow continuously but high speed and resolution when there are events. Their units don't allow that. That's a pretty easy software fix for them. On the positive side the video is clear, better than most. Adequate for ID of perpetrators. You can do all the network and cell phone stuff. I found the interface pretty straight forward. Price value on this unit is excellent, best I've seen. It will do the security job you're buying it for very well.
-
east set up and clear day and night
Posted by janelle bensn on 25th Jul 2012
Simple instructions comes with everything you need, just plug it into any VGA connection and its ready to rock and roll.
-
Easy set up right out of the box
Posted by Capt. AL on 4th Jul 2012
I gave this unit a 5 star due to the fact that everything worked as advertised. I hooked it all up on the living room floor to test it out, what a snap. The instruction book was ok, not overly explanatory. If you have any knowledge of tv's, computers or setting up a vcr this is easy. The only hard part of setting up the system is running the cable. I used a staple gun to run the cables up under my eaves and actually stapled right thru the cable a few times and thought, oh no, got to get a new cable,,nope,,worked just fine.
The night vision is not top of the line, but for the price it works fine if you tweak your camera settings. If you also have just a little bit of light it really helps out the night vision. In total darkness the infrared beam is kinda narrow and that's all you will see. but has the range specified. I have mine hooked to an old video monitor that had bnc connectors built in. Have not tried it on a computer via the vga yet. The colors aren't real great but again you can tweak your camera settings individually and get it looking good. You wont be reading a license plate but you can tell who people are at a good distance. Navigation of the system via the mouse is fairly straight forward and user friendly.
All around I was pleased with the operation for $200 bucks. This is a good all around DIY for the home.
