This wireless NVR surveillance system provides everything you need to defend your home or business, safeguard your loved ones and deter intruders. With four indoor/outdoor wireless IP cameras included in the package, simply plug into a power source and start viewing with this no hassle, fast and easy video monitoring and recording system for your home. No more need for video & audio cables, it's really plug-n-play. NOTE: EACH CAMERA STILL NEEDS TO BE POWERED WITH 4 SUPPLIED 12V POWER PLUGS. We continue to get calls on this issue so we would like everyone to know the cameras are in fact wireless, NOT "powerless".
What is Included
* (1) ZMD-NV-SBN4 4 Channel Security NVR
* (1) 1TB Hard Drive Included
* (4) ZMD-ISV-BFS23NM IP Network Camera
* (4) 12V 1.5A Power Supply for Security Cameras
* (4) 1M Network Cable
* (1) IR Remote Control & Mouse
* (1) User's Manual
* (1) One Year Warranty
Perfect Wireless SolutionNo video/audio cables are needed for this wireless NVR system, free yourself from long video audio wires and enjoy the convenience of wireless.
Quick and Easy ApplicationAs there are not so much accessories such as long cables to check, ZMD-NV-SBN4 can be replaced, repaired and upgraded in a matter of minutes.
Huge Cost Savings
Automatic Connection with IP Cameras
Remote Viewing on PC & 3G Smart PhonesKeep an eye on what goes on in and around your home with our wireless video surveillance system, either from home or away from anywhere in the world. View live video streams directly from your supported PC or 3G Smartphone running iPhone® 4.3 up, Android™ 2.2 up.
Safety Transmission & Monitoring

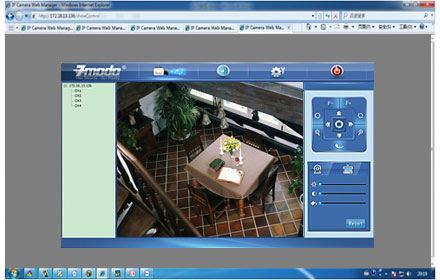

Super Convenient Control via IE Browser
Via IE browser, nearly most of the actions can be implemented including real-time preview, download and playback video footage, configurate NVR parameter, even upgrade the devices.

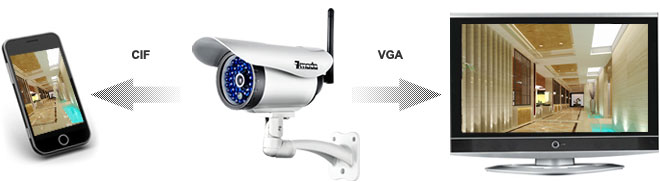

VGA and CIF Dual Stream Video Quality Selectable
Dual Stream Network Transmission allows the IP Camera to transmit steady fluid image and higher resolution video.
Instant Email Alerts if Alarm is triggered
This system is designed to send an email alert, complete with photo of the activity, if alarm is triggered, or if it experiences exception such as hard disk error or no space.

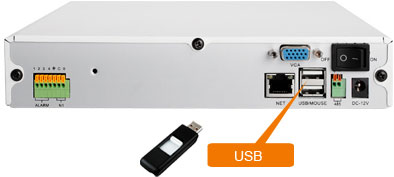

Easy USB Backup
Built-in USB port provides an easy option to transfer your files to a PC, backup, or send to others.
4x Weatherproof Wireless IP Cameras
Four wireless IP network cameras are included in the package. Each camera is constructed utilizing professional grade materials for the housing and a sunshade to help prevent glare, deterioration, and rusting. The cameras can be mounted almost anywhere indoors & outdoors.

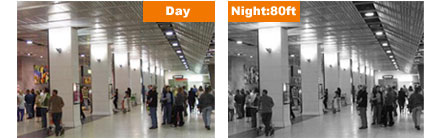

View at Night up to 80'
35 infrared (IR) LEDs activate automatically in low-light or no-light situations to allow you to see up to 80' away, and deactivate once lighting conditions are brighter.
|Model||ZMD-NV-SBN4 -4 CH Standalone NVR|
|Operation System||Linux Based|
|Display Frame Rate||120fps@VGA|
|Display Resolution||800×600@60Hz, 1024×768@60Hz, 1280×1024@60Hz|
|Recording Frame Rate||120fps @VGA|
|Record Resolution||120fps @VGA|
|Record Mode||Manual / Time Scheduled / Alarm Triggered|
|Playback Mode||Normal Play /Fast Forward /Fast Rewind/Slow Play|
|Network Function||Real-time Preview, Record, Playback, Download, NVR Setting, Upgrade, Mobile & Email Function etc|
|Network Interface||RJ45, 10M/100M|
|Net Protocol||TCP/IP, PPPoE, DHCP,DDNS|
|3G Mobile||Support mobile phone based on iPhone® 4.3 up,Android™ 2.2 up|
|Mobile Fuction||4 Channel Viewer / Channel Switch|
|Alarm Mode||Trigger Record, Email Alert, Audio Output, Alarm output. etc|
|Sensor/Alarm||4 CH Sensor Inputs / 1 CH Alarm Output|
|HDD Interface||1 SATA HD, Support up to 2TB|
|USB Interface||USB 2.0, USB Backup, Mouse|
|Backup||USB Flash Disk, Removable HDD|
|Remote Control||IR Remote Control|
|Remote Access||LAN or Internet Browsing|
|Connection with IP Camera||Automatically search and connect IP cameras within LAN|
|Power Supply||DC12V, 3A|
|Model||ZMD-ISV-BFS23NM - Wireless Network IP Camera|
|Image Sensor||1/4" Color CMOS Sensor|
|Video/Picture Adjustment||Brightness, Contrast, Chroma, Saturation|
|Mini. Illumination||0.1Lux / F 1.2|
|S/N Ratio||>48DB (AGC Off)|
|Infrared Light||35 IR LEDs, Night visibility up to 80'|
|Network Interface||RJ45 10/100M self-adaptive|
|Network Protocol||PPPOE, IP/TCP/UDP, DNS/DDNS, SMTP etc.|
|User Management||Multi-lever User Management, Support Up to 15 User|
|Wireless||WIFI, 802.11 b/g|
|IP Mode||Dynamic IP address, Static IP Address, PPPOE|
|Intelligent Motion Detection||Motion Detection Setting|
|Alarm Action||Support report to alarm / E-mail|
|Power Supply||DC 12V/1A|
|Operate Temperature||14°F ~ 122°F|
|Supported OS||Microsoft Win98 SE/ME/2000/XP/Vista/win7, Internet Explorer 6.0/7.0/8.0|
|Supported Mobile Phone OS||Android™ 2.2 up, Iphone® 4.3 up|
