Zmodo 4CH Day Night Surveillance System & 4 600TVL Cameras & 1TB HDD
(
1 product review
)
- Same Day Gurantee! (Ships same business day if ordered by 1pm CST)
- In Stock! (Ships w/in 24 hours of order)
- Ships in 5-7 days (This is a customized kit requiring addional build time.)
- Ships in 4-6 weeks (These are typically back-ordered items.)
Our friendly staff is here to help!
John
Why Buy From ZmodoDirect ?
- Communication: We're real people you can call and talk to!
- Trust: We're leaders in the Home Surveilance Business.
- Privacy: We hate Spam, and so won't sell your info.
- Secure: Your orders are processed on a secure server w/ SSL encryption.
Browse Other Options
Product Description
Easily blending at night with the black housing, the versatile dome and bullet camera combination ensures maximum versatility and coverage for locations with tricky angles and blind spots when placing cameras. Developed and designed for the needs of numerous end-users, this advanced 4 channel surveillance system has improved camera resolution to 600TVL, while still being affordable.
This advanced 4 channel complete security solution with 4 hi-resolution (700 TVL) night vision cameras that is fully controllable on your Smartphone, Tablet or PC. With motion activated push notifications, email alerts and easy Smartphone access, this multi-tasking Zmodo surveillance system gives you true, 24/7 day or night, video security no matter where you are located in the world.
Benefits
- D1 Resolution - The clearest resolution available
- Remote Access - Easy to monitor from anywhere
- Motion Detection - Receive a snapshot of motion detected activity!
3D Spin
Zmodo KDA4-CARQA22N-1T Specs
| Model | ZMD-DD-SAN4 - 4CH H.264 StandAlone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Video Input / Output | BNC 4-Channel Input /BNC1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input /BNC1-Channel Output |
| Display Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Recording Frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 |
| Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| Playback Mode | Normal Play /Fast Forward /Fast Rewind/ Frame by Frame |
| USB | USB Backup / USB 2.0 |
| Remote Control | IR Remote Control |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1000mA |
| Dimension | 290mm (W) x 205mm (D) x 42mm (H) |

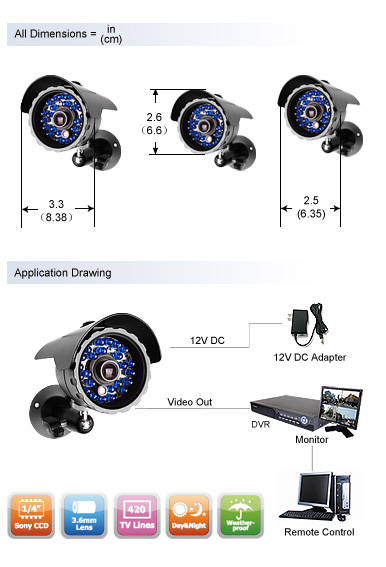

| Model | ZMD-CCH-BBB23NM - 700TVL Security Camera |
| Image Sensor | 1/4" Color CMOS |
| TV System | NTSC / PAL |
| Horizontal Resolution | 700 TV-Lines |
| Lens | 3.6mm |
| Number of IR LEDs | 24 LEDs |
| Infrared Illumination (Night Vision) | up to 80ft(20~25m) |
| Minimum Illumination | 0.0 Lux |
| S/N Ratio | 48dB |
| Video Output | 1.0Vp-p, 75ohms |
| Weatherproof | Yes |
| Operating Temperature | 14°F~122°F / -10°C ~50°C |
| Power | 12V DC |
| Power Consumption | IR on Max 150mA |
| Dimensions (W x D x H) | 3.3" x 2.5" x 2.6" |
| Gross Weight | 0.33 lbs |
| Material | Metal Shell |
| Model | ZMD-CCH-DAS23NM -Hi-Reso Indoor Dome Camera |
| Image Sensor | 1/4" Color CMOS |
| TV System | NTSC / PAL |
| Lens Mount | 3.6mm |
| Scanning System | 2:1 Interlace |
| Infrared Irradiation Distance | 24 Ultra Strong Infrared LEDs- Visible up to 80 ft (20~25m) |
| Minimum Illumination | 0 Lux (IR On) |
| Horizontal Resolution | 600 TV-Lines |
| Synchronization System | Internal Synchronization |
| S/N Ratio | > 48dB |
| Gamma | 0.45 |
| Auto Gain Control | Built in |
| Operation Temperature | 14°F~122°F / -10°C ~50°C |
| Power | 12V DC |
| Power Consumption | IR on Max 150mA |
| Back Light Compensation | Auto |
| Video Out | 1.0p-p 75O BNC |
| Mount | Ceiling and Wall |
| Dimension | 3.6"x3.6"x2.5" |
Features
DVR Features- H.264 Hardware Compression
- Video Input / Output: BNC 4/BNC 1
- Video Output: VGA
- Audio Input / Output: RCA 4/BNC 1
- Hard Drive 1TB Installed and Configured
- Recording Mode: Continuous/Scheduled/Motion Detection
- IR Remote Control
- PTZ via RS-485 Port
a) iPhone™ & iPad iOS
b) Google Android
c) Blackberry™
d) Windows Mobile™ Pro
e) Symbian
- 1/4"CMOS Image Sensor
- 700 TV Lines, Horizontal
- 3.6mm Lens
- Signal: NTSC
- Night Vision Min. Light: 0 Lux (IR On)
- IR Irradiation Distance: up to 65'
- Operation Temperature: -25°F~122°F
- Weatherproof: Yes
- Power: 12V DC
- Mount: Wall
- Video Connector: BNC
- Power Connector: RCA 12V DC
Technical Specs
Included With: KDA4-CARQA22N-1T

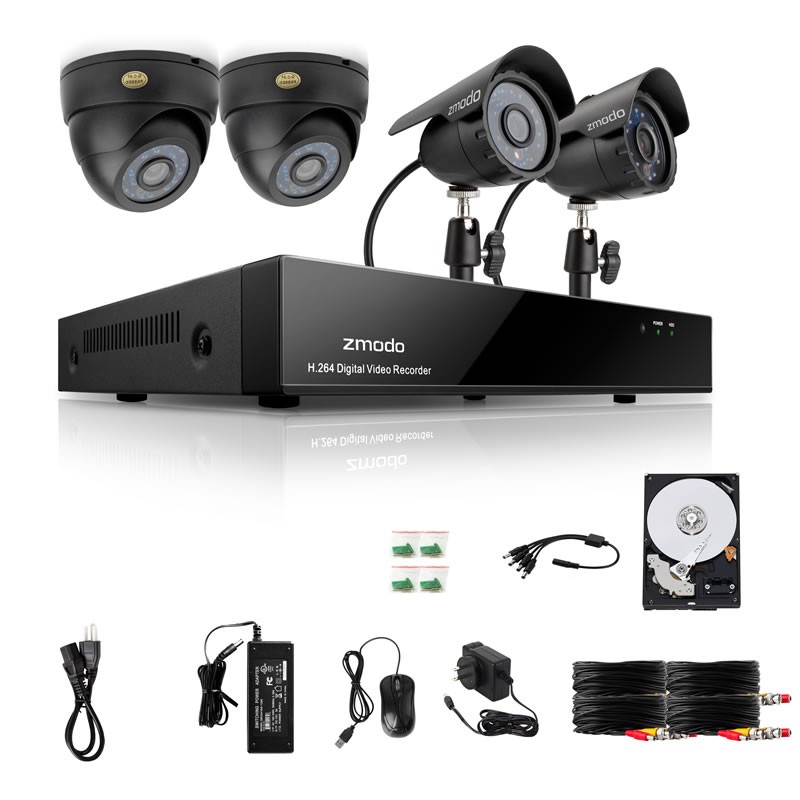

Package Includes
- (1) ZMD-DD-SAN4-1TB (DVR-H9114V-1TB) 4 Channel Security DVR,with 1TB Hard Drive
- (4) ZMD-CNR-BBB23NM Outdoor IR Security Camera
- (4) 60ft CCTV Power + Video Cables for Security Cameras
- (1) 12V/1500mA Single Power Supply for Security Cameras
- (1) 1-4 Splitter Cable for Security Cameras
- (1) IR Remote Control & Mouse
- (1) User's Manual
Warranty Information
Find Similar Products by Category
Product Reviews
-
Best buy for the money
Posted by Tom on 15th Nov 2013
This product is unbelievable for the money! I got all the above stuff for just $229.95 PLUS free shipping! Have two of the four cameras hooked up so far, and they far exceed my expectations. The clarity and wide view angles are just great. My wife was also astounded at the quality of the pictures. Can't wait to get the other two cameras hooked up and try out the networking feature. Oh, yes---the product was delivered to my home in Ohio the second day after I made the buy.
