8CH H.264 DVR Security System with 1TB HDD & 8 700TVL Indoor Outdoor Night Vision Security Cameras
(
1 product review
)
- Same Day Gurantee! (Ships same business day if ordered by 1pm CST)
- In Stock! (Ships w/in 24 hours of order)
- Ships in 5-7 days (This is a customized kit requiring addional build time.)
- Ships in 4-6 weeks (These are typically back-ordered items.)
Our friendly staff is here to help!
John
Why Buy From ZmodoDirect ?
- Communication: We're real people you can call and talk to!
- Trust: We're leaders in the Home Surveilance Business.
- Privacy: We hate Spam, and so won't sell your info.
- Secure: Your orders are processed on a secure server w/ SSL encryption.
Browse Other Options
Product Description
Equipped with both wall or ceiling mounts, the versatile dome and bullet camera combination ensures maximum versatility and cover locations with tricky angles and blind spot when placing cameras. Developed and designed for the needs of numerous end-users, this advanced 8 channel surveillance system has improved camera resolution to 600TVL, while still being affordable.
This advanced 8 channel complete security solution with 8 hi-resolution (700TVL) night vision cameras that is fully controllable on your Smartphone, Tablet or PC. With motion activated push notifications, email alerts and easy Smartphone access, this multi-tasking Zmodo surveillance system gives you true, 24/7 day or night, video security no matter where you are located in the world.
Benefits
- Free Mobile Apps - At this price you are recieving high quality cameras that will last with no worries.
- 1TB Harddrive - The 1TB hard drive included allows for up to 16 days of recording space
3D Spin
Zmodo KDA8-CARBZ44N-1T Specs
Features
DVR Features- Plug-n-Play
- Record: 240 fps
- Display: 240 fps
- 1TB HD Installed and Configured
- Embedded Linux OS
- PTZ via RS-485 Port
- Signal System: NTSC / PAL
- H.264 Hardware Compression
- Video Input / Output: BNC 8/BNC 1
- Video Output: VGA
- Audio Input / Output: RCA 4/BNC 1
- Recording Mode: Continuous/ Scheduled/ Motion
- Display Mode: Each/ All/ Auto Switch/ Hidden
- Playback Search: Time & Date, Event List
- Network:RJ45 TCP/IP or DDNS
- Remote Access: LAN or IE Browser
- Support Remote View via 3G Mobile
- Bullet Camera: Black
- Dome Camera: Black
- 1/4" Sony Color CMOS Image Sensor
- 700TV Lines, Horizontal
- 3.6mm Lens
- Signal: NTSC
- Night Vision Min. Light: 0 Lux (IR On)
- IR Irradiation Distance: 65ft
- Operation Temperature: -25°F~122°F
- Weatherproof: Yes
- Power: 12V DC
- Mount: Ceiling or Wall
- Video Connector: BNC
- Power Connector: RCA
Technical Specs
| Model | ZMD-DD-SAN8 - 8CH H.264 StandAlone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC 8-Channel Input /BNC 1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input /BNC 1-Channel Output |
| Display Frame Rate | NTSC: 240fps@D1/ PAL: 200fps@D1 |
| Display Resolution | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 56 fps @ D1 /120 fps @ HD1 / 240 fps @ CIF/PAL: 48 fps @ D1 /100 fps @ HD1/ 200 fps @ CIF |
| Record Resolution | Selectable: NTSC: D1(704*480), HD1(704*240), CIF(352*240)/PAL: D1(704*576), HD1(704*288), CIF(352*288) |
| Record Mode | Continuous / Time Schedule / Motion Detection |
| Recording Pack Time | 15/30/45/60mins Selectable |
| Network Function | Support Live View with IE & Mobile Phone |
| Network | RJ45, 10M/100M |
| Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
| Remote Access | LAN or Internet Browsing |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| USB | USB Backup/USB 2.0 |
| Remote Control | Not Included |
| Power Supply | 12V/3A DC |
| Power Consumption | IR on Max 1200mA |
| Dimension | 11.4 "(W) x 9.1" (D) x 1.65"(H) |
| Model | ZMD-CNR-BCS23NM (CM-N12613SV)-Bullet Camera |
| Image Sensor | 1/4"Sony Color CMOS |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 512 (H) x 492 (V) / PAL: 512 (H) x 582 (V) |
| Horizontal Resolution | 700TV-Lines |
| Lens | 3.6mm |
| Number of IR LEDs | 24 PCS |
| Infrared Illumination (Night Vision) | up to 65ft (15~20m) |
| Minimum Illumination | 0 Lux (IR On) |
| S/N Ratio | ≥ 48dB |
| Video Output | 1.0Vp-p, 75ohms (BNC) |
| Operating Temperature | 14°F~122°F / -10°C ~50°C |
| Weatherproof | Yes |
| Power | 12V DC |
| Dimensions (W x D x H) | 3.7" x 2.6" x 2.5 " |
| Gross Weight | 0.5lbs |
| Material | Metal Shell |

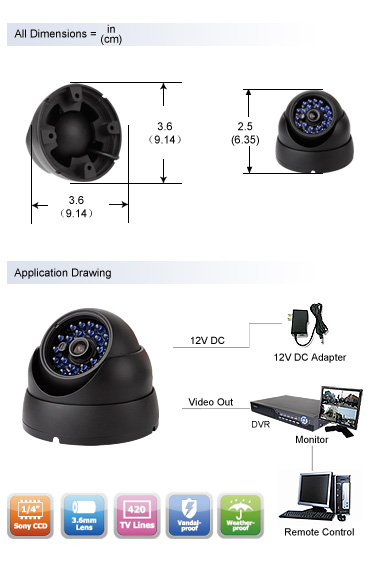

| Model | ZMD-CNR-DBS23NM (CM-N22203BK)-Color CMOS Vandal-Proof Dome Camera |
| Image Sensor | 1/4" Sony Color CMOS |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 512 (H) x 492 (V) / PAL: 512 (H) x 582 (V) |
| Lens Mount | 3.6mm |
| Scanning System | 2:1 Interlace |
| Infrared Irradiation Distance | 24 Ultra Strong Infrared LEDs- Visible up to 65 ft (15~20m) |
| Minimum Illumination | 0 Lux (IR On) |
| Horizontal Resolution | 700TV-Lines |
| Synchronization System | Internal Synchronization |
| S/N Ratio | > 48dB |
| Gamma | 0.45 |
| Auto Gain Control | Built in |
| Weatherproof | Yes |
| Operation Temperature | 14°F~122°F / -10°C ~50°C |
| Power | 12V DC |
| Back Light Compensation | Auto |
| Video Out | 1.0p-p 75O BNC |
| Auto Iris | Video / DC |
| Dimensions | 3.6" x 3.6 " x 2.5" |
| Weight | 1.0 lbs |
Included With: KDA8-CARBZ44N-1T

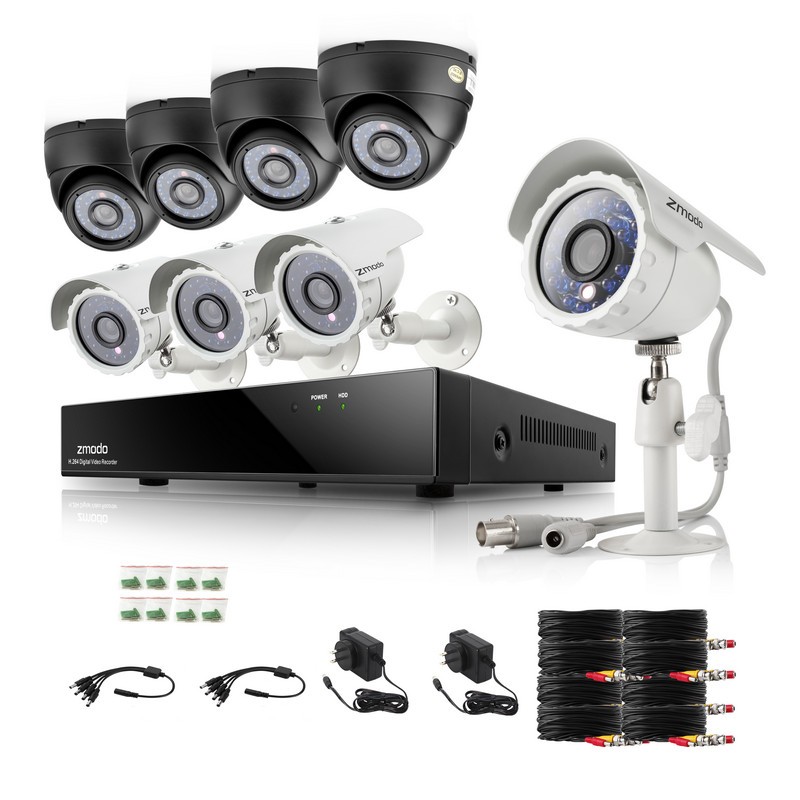

Package Includes
- (1) ZMD-DD-SAN8-1TB 8CH DVR, 1TB Hard Drive
- (4) ZMD-CNR-BCS23NM (CM-N12613SV) Bullet Security Cameras
- (4) ZMD-CNR-DBS23NM (CM-N22203BK) Dome Security Cameras
- (8) 60' Video + Power All-in-one Cables for Security Cameras
- (2) 12V 1.5A 4 Port Power Supply for Security Cameras
- (1) User's Manual
Warranty Information
Find Similar Products by Category
Product Reviews
-
Not bad for the price
Posted by Unknown on 9th Jun 2013
It is a good deal for the price. The cameras do an OK job recording both day and night. You can customize whether you want motion, constant, off, or schedule record. The only issue is that even with the sensitivity set to low, it still goes off constantly, though you can mask out areas. The wires are a little thin, but seem to be OK and long enough for an average house. The play back option is good, just wish you could select certain days you can delete rather than the whole drive. I haven't been able to set up the internet option yet, but I need to find out how to configure multiple devices for web access. I will contact customer support soon. Relatively straight forward with set up. Cameras have a decent angle of coverage. Infrared works for a good enough distance for my purposes. Sometimes the alarm goes off for the record even if it is off, but that may be because I configured it wrong. Overall not a bad deal for the cost.
