16CH DVR with 1TB HDD & 16 600 TVL 65ft IR Outdoor Security Cameras
(
1 product review
)
- Same Day Gurantee! (Ships same business day if ordered by 1pm CST)
- In Stock! (Ships w/in 24 hours of order)
- Ships in 5-7 days (This is a customized kit requiring addional build time.)
- Ships in 4-6 weeks (These are typically back-ordered items.)
Our friendly staff is here to help!
John
Why Buy From ZmodoDirect ?
- Communication: We're real people you can call and talk to!
- Trust: We're leaders in the Home Surveilance Business.
- Privacy: We hate Spam, and so won't sell your info.
- Secure: Your orders are processed on a secure server w/ SSL encryption.
Browse Other Options
Product Description
This DVR that comes with this kit is on back-order - We'll automatically upgrade you to the next best 16 Ch DVR at no extra charge. The new DVR can viewed here: 16 CH Zmodo DVR w/ QR Code Setup
This kit, KDH6-CARBZ6ZN-1T, includes a 16 CH H.264 DVR and 16 CMOS Color IR Image Sensor surveilance cameras allowing you to monitor your home or office around the clock.
The DVR is one of the latest models featuring advanced security functions. With the capacity to record from 16 cameras, it is highly recommended for businesses. It provides basic surveillance function at an affordable price for your security and surveillance needs.
These outdoor CCTV cameras deliver crystal clear video image in daylight, as well as black and white video in darkness up to 65ft away with 24 built-in IR LEDs. This camera is perfect for outdoor and indoor applications, driveways, parking lots, halls, warehouses, and open office areas.
Benefits
- 16 channel DVR - Add up to 16 Cameras to this Kit
- 24 IR LEDs - Captures video day and night
- 1 TB Hard drive - Record up to 10 days of constant video with 16 cameras
3D Spin
Zmodo KDH6-CARBZ6ZN-1T Specs
Features
DVR Features- Plug-n-Play
- Record: 480 fps
- Display: 480 fps
- Embedded Linux OS
- IR Remote Control
- PTZ via RS-485 Port
- Signal System: NTSC / PAL
- H.264 Hardware Compression
- 1TB Hard Drive Installed
- Video Input / Output: BNC 16/BNC 1
- Video Output: VGA
- Audio Input / Output: RCA 4/BNC 1
- Display Mode: Each / All / Auto Switch / Hidden
- Network:RJ45 TCP/IP or DDNS
- Remote Access: LAN or IE Browser
- Support Remote View via 3G Mobile
- Recording Mode: Manual/ Schedule /Motion Detection/ Alarm/ Motion Detection & Alarm
- 600 TV Lines, Horizontal
- 3.6mm Lens
- Signal: NTSC
- Night Vision Min. Light: 0 Lux (IR On)
- IR Irradiation Distance: up to 65'
- Operation Temperature: -25°F~122°F
- Weatherproof: Yes
- Power: 12V DC
- Mount: Ceiling or Wall
- Video Connector: BNC
- Power Connector: RCA 12V DC
Technical Specs

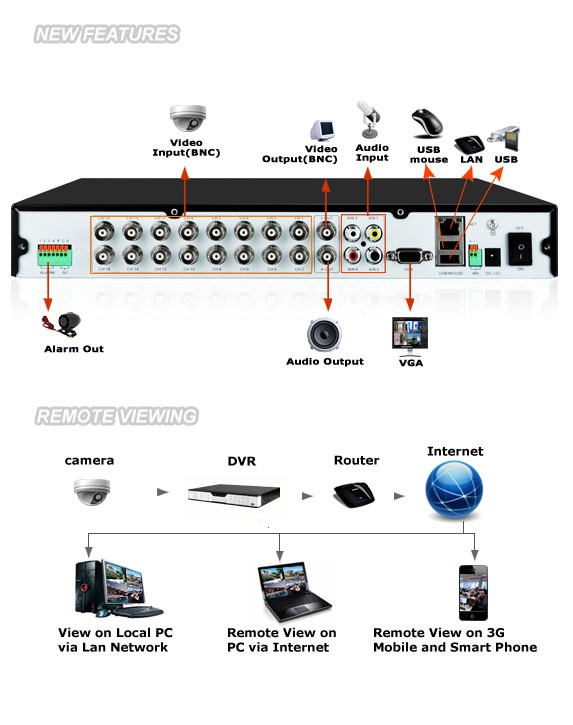

| Model | ZMD-DC-SBN6 16CH Standalone DVR |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux Based |
| Video Input / Output | BNC16-Channel Input/ BNC1-Channel Output |
| Other Video Output | VGA |
| Audio Input / Output | RCA 4-Channel Input/ BNC1-Channel Output |
| Display Frame Rate | NTSC: 480fps@CIF / PAL: 400fps@CIF |
| Display Resolution | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
| Recording Frame Rate | NTSC: 480 fps@CIF/ PAL: 400 fps@CIF |
| Record Resolution | NTSC: CIF (352 x 240)/PAL: CIF (352 x 288) |
| Record Mode | Manual/ Schedule /Motion Detection/Alarm/ Motion Detection&Alarm supported |
| 3G Mobile | Support mobile phone based on Android\ iPhone\ iPad\ IOS\Symbian\Windows Mobile. |
| Mobile Function | 1 Channel Viewer / Channel Switch / Control PTZ |
| Network Function | IE Viewer / Live Monitoring / DVR Setting / Mobile & Email Function |
| Network | RJ45, 10M/100M |
| Net Protocol | IPv4, PPPOE client, DHCP client and TCP/UDP protocol supported. |
| Remote Access | Remote Client Software and IE Browser |
| PTZ Control | RS-485 |
| HDD Interface | SATA, Support between 250GB and 2TB |
| Playback Mode | Normal Play, Fast Forward, Fast Rewind, Manual |
| Sensor/ Alarm | 4-ch Sensor Inputs / 1-ch Alarm Output |
| USB | USB Thumb Drive Backup or Upgrade / Mouse / Removable HDD |
| Remote Control/Mouse | Included/Included |
| Power Supply | 12V/5A DC |
| Power Consumption | IR on Max 2000mA |
| Dimension | 354mm (W) x 275mm (D) x 47mm (H) |

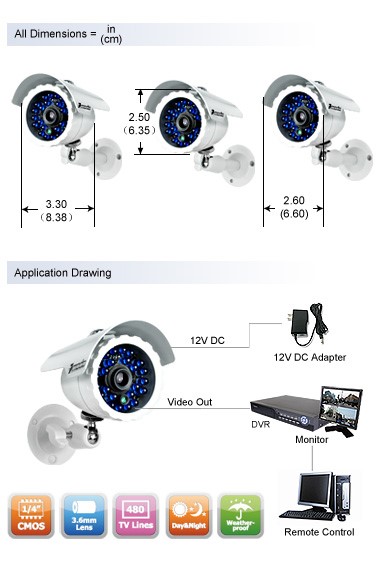

| Model | ZMD-CBR-BBS23NM(CM-C22623BG)- Color IR Bullet Camera |
| Image Sensor | 1/4" Color CMOS |
| TV System | NTSC / PAL |
| Effective Pixels | NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V) |
| Horizontal Resolution | 600 TV-Lines |
| Lens | 3.6mm |
| Number of IR LEDs | 24 LEDs |
| Infrared Illumination (Night Vision) | up to 65ft(15~20m) |
| Minimum Illumination | 0.0 Lux |
| S/N Ratio | 48dB |
| Video Output | 1.0Vp-p, 75ohms |
| Weatherproof | Yes |
| Operating Temperature | 14°F~122°F / -10°C ~50°C |
| Power | 12V DC |
| Power Consumption | IR on Max 150mA |
| Dimensions (W x D x H) | 3.3" x 2.5" x 2.6" |
| Gross Weight | 0.33 lbs |
| Material | Metal Shell |
Included With:
KDH6-CARBZ6ZN-1T

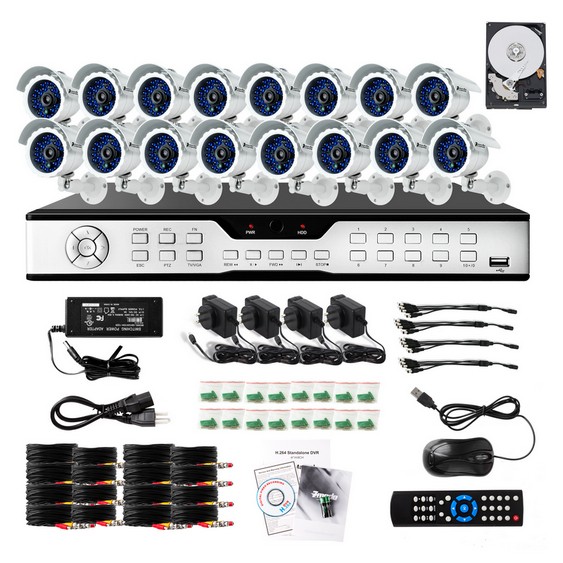

Package Includes:
- (1) ZMD-DC-SBN6 16 Channel Security DVR 1TB HD Installed
- (16) CM-C22623BG Outdoor IR Security Cameras
- (16) 60ft CCTV Power + Video Cables for Security Cameras
- (4) 12V/1500mA Single Power Supply for Security Cameras
- (4) 1-4 Splitter Cable for Security Cameras
- (1) User's Manual
- (1) IR Remote Control
*Supercedes SKU
KDH6-BARBZ6ZN-1TB
