Equipped with both wall or ceiling mounts, the versatile dome and bullet camera combination ensures maximum versatility and cover locations with tricky angles and blind spot when placing cameras. High-Resolution day/ night cameras and an extraordinary user-friendly DVR make this home security system one of our most popular. Upgraded 600TVL Sony CCD image enables this 8 channel professional security system to deliver unmatched quality images with improved color and clarity to catch every detail and observe every moment at your home or business.

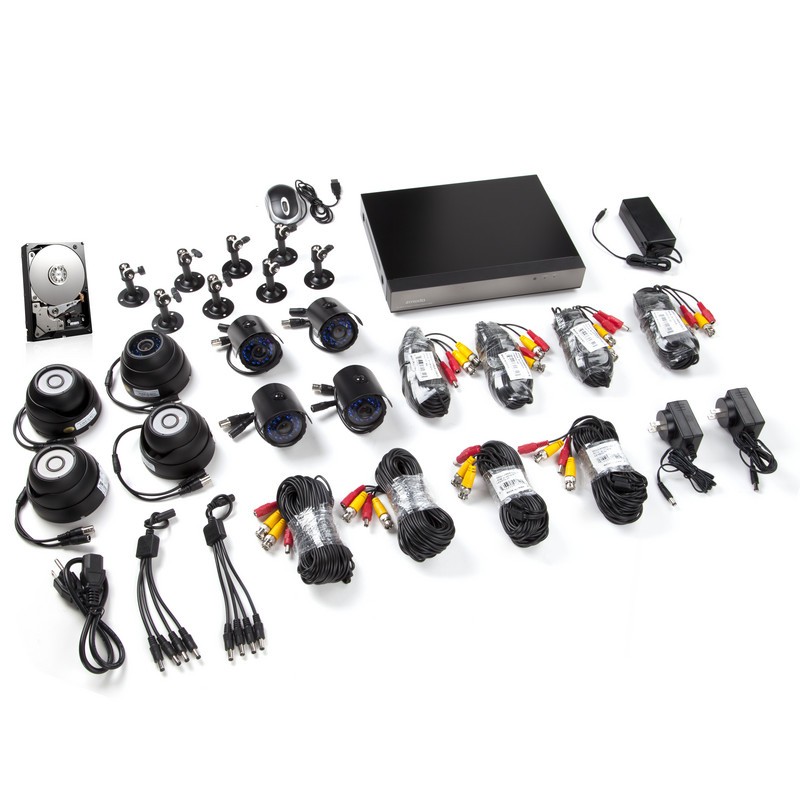

This advanced 8 channel complete security solution with 8 sony ccd hi-resolution (600 TVL) night vision cameras that is fully controllable on your Smartphone, Tablet or PC. With motion activated push notifications, email alerts and easy Smartphone access, this multi-tasking Zmodo surveillance system gives you true, 24/7 day or night, video security no matter where you are located in the world.
Model | ZMD-DD-SAN8 - 8CH H.264 StandAlone DVR |
Video Compression | H.264 |
Video System | NTSC / PAL |
Video Input / Output | BNC 8-Channel Input /BNC 1-Channel Output |
Other Video Output | VGA |
Display Frame Rate | NTSC: 240 fps @ D1 / PAL: 200 fps @ D1 |
Display Resolution | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
Recording Frame Rate | NTSC: 240 fps @ D1 / PAL: 200 fps @ D1 |
Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
Record Mode | Continuous / Time Schedule / Motion Detection |
Recording Pack Time | 15/30/45/60mins Selectable |
Network Function | Support Live View with IE & Mobile Phone |
Network | RJ45, 10M/100M |
Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
Remote Access | LAN or Internet Browsing |
PTZ Control | RS-485 |
HDD Interface | SATA, Support between 250GB and 2TB |
USB | USB Backup/USB 2.0 |
Remote Control | Not Included |
Power Supply | 12V/3A DC |
Power Consumption | 10W-15W |
Dimension | 11.4 "(W) x 9.1" (D) x 1.65"(H) |
Model | ZMD-CMH-BBB23NM - 700TVL Security Camera |
Image Sensor | 1/4" |
TV System | NTSC / PAL |
Horizontal Resolution | 700 TV-Lines |
Lens | 3.6mm |
Number of IR LEDs | 24 LEDs |
Infrared Illumination (Night Vision) | up to 80ft (20~25m) |
Minimum Illumination | 0.0 Lux |
S/N Ratio | 48dB |
Video Output | 1.0Vp-p, 75ohms |
Weatherproof | Yes |
Operating Temperature | 14°F~122°F / -10°C ~50°C |
Power | 12V DC |
Power Consumption | IR on Max 150mA |
Dimensions (W x D x H) | 3.3" x 2.5" x 2.6" |
Gross Weight | 0.33 lbs |
Material | Metal Shell |
Model | ZMD-CMH-DBS23NM- Color IR Dome Camera |
Image Sensor | 1/4" |
TV System | NTSC |
Lens Mount | Lens: 3.6mm |
Scanning System | 2:1 Interlace |
Infrared Irradiation Distance | 24 Ultra Strong Infrared LEDs- Visible up to 80 ft (20-25m) |
Minimum Illumination | 0 Lux (IR On) |
Horizontal Resolution | 600 TV-Lines |
Synchronization System | Internal Synchronization |
S/N Ratio | > 48dB |
Gamma | 0.45 |
Auto Gain Control | Built in |
Weatherproof | Yes |
Vandalproof | Yes |
Operation Temperature | 14°F~122°F / -10°C ~50°C |
Power | 12V DC |
Power Consumption | 460mA |
Back Light Compensation | Auto |
Video Out | 1.0V p-p 75O BNC Connector |
Auto Iris | Video / DC |
Dimensions | 3.3"x4.3"x4.3" |
