Zmodo High Resolution Vari-focal Dome Security Camera w/ 4-9mm Lens & 100' IR

  • Vari-focal Vandal Proof Zmodo Dome
  • Technical Specs of ZMD-CDR-DCM39NM
  • ZMD-CDR-DCM39NM Spec Sheet
Out of Stock - No ETA
1.00 LBS

Add to Wish List

Click the button below to add the Zmodo High Resolution Vari-focal Dome Security Camera w/ 4-9mm Lens & 100' IR to your wish list.

Our friendly staff is here to help!

We Are Here To Help!




M-F 8am - 5pm CST


Chat Offline

Why Buy From ZmodoDirect ?

  • Communication: We're real people you can call and talk to!
  • Trust: We're leaders in the Home Surveilance Business.
  • Privacy: We hate Spam, and so won't sell your info.
  • Secure: Your orders are processed on a secure server w/ SSL encryption.

Product Description

This camera is one of the best performance infrared security cameras at an affordable price.
It offers a wonderful quality picture with 540 TV Lines-- super high resolution color video during the day and 100' night vision video in 100% darkness with IR on.And with audio built- in,this camera can be used to capture all different voices, especially when the picture is not clear enough to help you figure out the person.

The weatherproof dome surveillance camera employs a 1/3" Sony CCD image sensor and a 4-9 mm vari-focal lens.The vari-focal lens allows you to have the ability to adjust the image distance.This camera can be mounted almost anywhere. And it provides a BNC connection for video and an RCA connection for power.Easy installation and adjustment.



  • Varifocal Lens -Allows you to manually zoom and focus between 4-9mm and get the camera set just how you want it!
  • 500 TVL CCD Image Sensor - Allows you to have sharp clear images with true colors!

Zmodo ZMD-CDR-DCM39NM Specs



  • * 1/3" Sony Color CCD Image Sensor
  • * 540 TV Lines, Horizontal
  • * 4-9mm Vari-Focal Lens (Manual)
  • * Signal: NTSC
  • * Iris: Auto
  • * Vandal Weatherproof
  • * Night Vision Min. Light: 0 Lux (IR On)
  • * IR Irradiation Distance: 100' (30m)
  • * Power: 12V DC
  • * Mount: Ceiling or Wall
  • * Video Connector: BNC
  • * Power Connector: RCA 12V DC
  • * Color: Black
  • *Note: Vari-focal cameras will consume more power than regular ones, so it's better to use the single power adapter to keep the power quality.

Technical Specs

Model ZMD-CDH-DCM39NA - Color IR Dome Camera
Image Sensor 1/3" Color CCD
TV System NTSC
Focal Lens 4-9mm
Infrared Irradiation Distance 36 Ultra Strong Infrared LEDs- Visible up to 100 ft (30m)
Minimum Illumination 0 Lux (IR On)
Horizontal Resolution 540 TV-Lines
Audio None
S/N Ratio > 48dB
Operation Temperature 14°F ~ 122°F
Power 12V DC
Power Consumption IR on Max 350mA
Back Light Compensation Off
Video Output 1.0V p-p 75O BNC

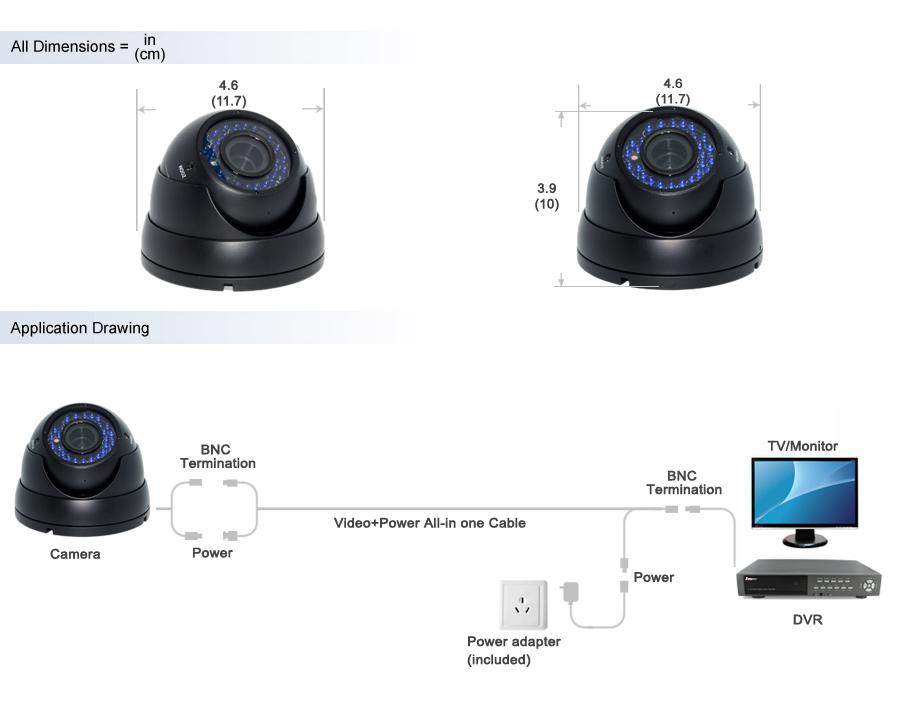

Dimensions 4.6" x 4.6" x 3.9"(inch)
Weight 1.5lbs
Color Black
Material Aluminum

Included With: ZMD-CDR-DCM39NM

Items included with Zmodo Vandal Proof Dome Camera
* (1) ZMD-CDR-DCM39NM High Resolution Audio Security Camera
**Power Supply & Cables sold seperately.
Supercedes SKU CM-S12316SV

Warranty Information

1 Year Warranty
