Zmodo 16CH Security DVR System w/ 1TB HDD & 8 700TVL Dome Cameras

  • Front view of Zmodo KDH6-MARZBZ8N-1T Surveillance DVR
  • Back view of Zmodo KDH6-MARZBZ8N-1T Surveillance DVR
  • ZMD-CMH-DBS23NM Color Security Camera
  • ZMD-CMH-DBS23NM Color Security Camera Back
  • KDH6-MARZBZ8N-1T Package Includes
18.00 LBS
Current Stock:
Out of stock

Add to Wish List

Click the button below to add the Zmodo 16CH Security DVR System w/ 1TB HDD & 8 700TVL Dome Cameras to your wish list.

Our friendly staff is here to help!

We Are Here To Help!




M-F 8am - 5pm CST


Chat Offline

Why Buy From ZmodoDirect ?

  • Communication: We're real people you can call and talk to!
  • Trust: We're leaders in the Home Surveilance Business.
  • Privacy: We hate Spam, and so won't sell your info.
  • Secure: Your orders are processed on a secure server w/ SSL encryption.

Product Description

Easily blending into environment and hardly noticeable, as well as upgraded reliable quality images with true colors, this 16 channel video surveillance system is always being on the top of the shopping list for security of apartments, homes and small businesses. The precise dome mounting allow these dome cameras to be mounted on walls or awnings for optimal visibility. Place this compact camera by your front door and see the exact moment that important package you've been waiting for arrives.

This advanced 16 channel complete security solution with 8 hi-resolution (600 TVL) sony ccd night vision cameras that is fully controllable on your Smartphone, Tablet or PC. With motion activated push notifications, email alerts and easy Smartphone access, this Zmodo surveillance system gives you true, 24/7 day or night, video security no matter where you are located in the world.


  • Sony Image Sensor - Clearer picture and more vibrant colors compared to the other models.
  • Aluminum Body - Tough aluminum body help makes this camera weather and vadal proof.
  • 16 channels - Allows you to add up to 8 more cameras to this system!

Zmodo KHJ6-YARZBZ8N-1T Specs



DVR Features
  • H.264 Hardware Compression
  • Video Input / Output: BNC16/BNC 1
  • Video Output: VGA
  • Audio Input / Output: RCA 4/BNC 1
  • Recording Mode: Manual/ Schedule /Motion Detection/Alarm/ Motion Detection and Alarm
  • Sensor/Alarm: 4-ch Sensor Inputs / 1-ch Alarm Output
  • PTZ via RS-485 Port
Supports Remote View via smartphone & 3G Mobile with each of these systems listed below:
  • iPhone® & iPad ios 5
  • Google Android™ 2.1~2.3
  • Blackberry® 7
  • Windows Mobile® Pro 5.5 ~ 6.1
  • Symbian™ V3 & V5
Camera Features
  • 1/4" Sony Color CCD Image Sensor
  • 600 TV Lines, Horizontal
  • 3.6mm Lens
  • Signal: NTSC
  • Night Vision Min. Light: 0 Lux (IR On)
  • IR Irradiation Distance: up to 80'
  • Operation Temperature: -25F~122F
  • Weatherproof: Yes
  • Power: 12V DC
  • Mount: Ceiling or Wall
  • Video Connector: BNC
  • Power Connector: RCA 12V DC
  • Color: Black

Technical Specs

Model ZMD-DC-SBN6 16CH Standalone DVR
Video Compression H.264
Video System NTSC / PAL
Video Input / Output BNC16-Channel Input/ BNC1-Channel Output
Other Video Output VGA
Audio Input / Output RCA 4-Channel Input/ BNC1-Channel Output
Display Frame Rate NTSC: 480fps@CIF / PAL: 400fps@CIF
Display Resolution NTSC: CIF (704 x 480)/ PAL: CIF (704 x 576)
Recording Frame Rate NTSC: 480 fps@CIF/ PAL: 400 fps@CIF
Record Resolution NTSC: CIF (352 x 240)/PAL: CIF (352 x 288)
Record Mode Manual/ Schedule /Motion Detection/Alarm/ Motion Detection&Alarm supported
3G Mobile Support mobile phone based on Android, iPhone or iPad.
Mobile Function 1 Channel Viewer / Channel Switch / Control PTZ
Network Function IE Viewer / Live Monitoring / DVR Setting / Mobile & Email Function
Network RJ45, 10M/100M
Net Protocol IPv4, PPPOE client, DHCP client and TCP/UDP protocol supported.
Remote Access Remote Client Software and IE Browser
PTZ Control RS-485
HDD Interface SATA, Support between 250GB and 2TB
Playback Mode Normal Play, Fast Forward, Fast Rewind, Manual
Sensor/ Alarm 4-ch Sensor Inputs / 1-ch Alarm Output
USB USB Thumb Drive Backup or Upgrade / Mouse / Removable HDD
Remote Control/Mouse Included/Included
Power Supply 12V/5A DC
Power Consumption IR on Max 2000mA
Dimension 354mm (W) x 275mm (D) x 47mm (H)
Model ZMD-CMH-DBS23NM- Color IR Dome Camera
Image Sensor 1/4" SONY Color CCD
TV System NTSC
Lens Mount Lens: 3.6mm
Scanning System 2:1 Interlace
Infrared Irradiation Distance 24 Ultra Strong Infrared LEDs- Visible up to 80 ft (20-25m)
Minimum Illumination 0 Lux (IR On)
Horizontal Resolution 600 TV-Lines
Synchronization System Internal Synchronization
S/N Ratio > 48dB
Gamma 0.45
Auto Gain Control Built in
Weatherproof Yes
Vandalproof Yes
Operation Temperature 14°F~122°F / -10°C ~50°C
Power 12V DC
Power Consumption 460mA
Back Light Compensation Auto
Video Out 1.0V p-p 75O BNC Connector
Auto Iris Video / DC

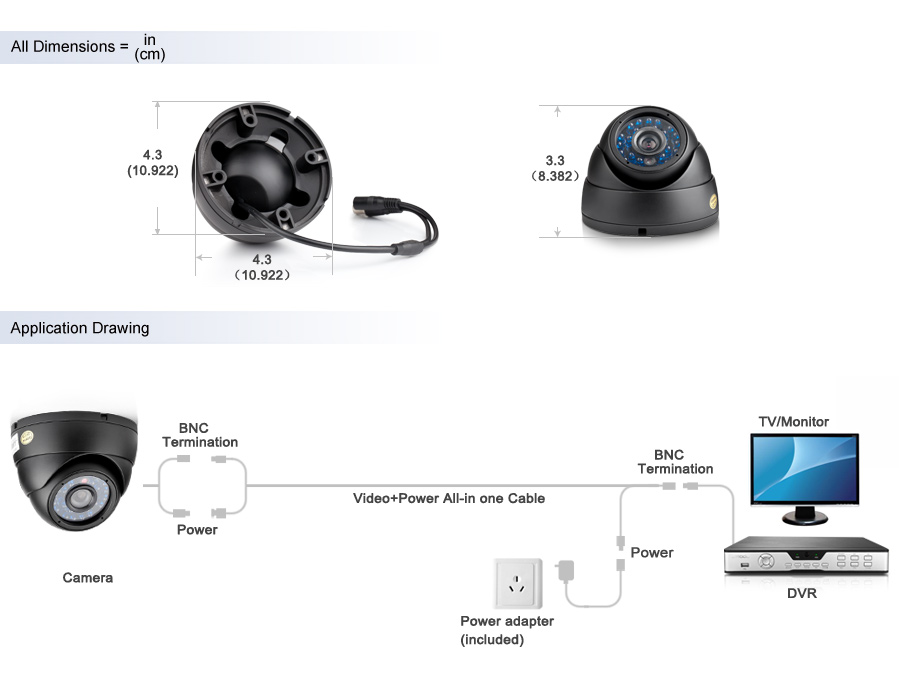

Dimensions 3.3"x4.3"x4.3"

Included With: KHJ6-YARZBZ8N-1T

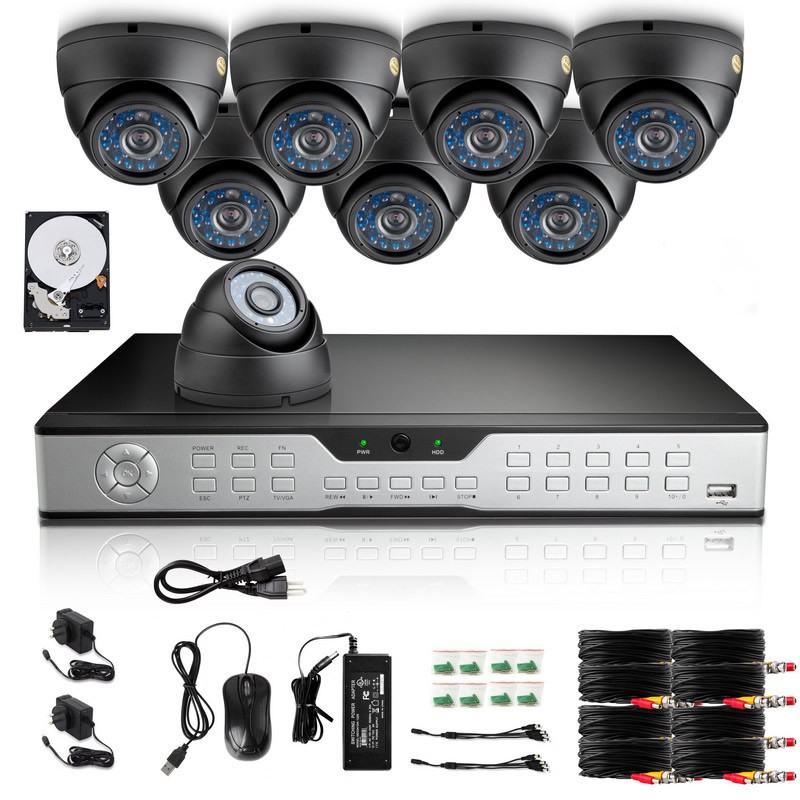

Package Includes
  • (1) ZMD-DC-SBN6-1TB 16 Channel Security DVR,with 1TB Hard Drive
  • (8)ZMD-CMH-DBS23NM Color Security Cameras (700 TVL)
  • (8) 60' Video + Power All-in-one Cables for Security Cameras
  • (2) 12V/1500mA Power Supply for Cameras
  • (2) 1-4 Splitter Cable for Cameras
  • (1) Power Supply for DVR
  • (1) Mouse

Product Requirements

1.A Monitor
2.A VGA cable
3.A CAT-5 cable connecting the DVR to your router. (for remote viewing)
4.A physical internet connection such as Cable/DSL/Fiber. No satellite, 3G/4G hotspots, or city-wide wireless (for remote viewing)
5.A minimum upload speed of at least 512kbps at the location of the DVR (for remote viewing)
6.A Windows based computer. Windows XP, Vista, 7, or 8.(for remote viewing) *
  *Depending on the hardware within the machine*

Warranty Information

1 Year Warranty
