Zmodo 16CH DVR 1TB & 8 CMOS 600TVL 65ft IR Outdoor Security Cameras

  • Image 1
  • Zmodo 16 Channel DVR Surveillance System
  • Image 3
  • Image 4
  • Image 5
Please Check the 16CH DVR Kit Category for our Most up to date offering
20.00 LBS

Add to Wish List

Click the button below to add the Zmodo 16CH DVR 1TB & 8 CMOS 600TVL 65ft IR Outdoor Security Cameras to your wish list.

Our friendly staff is here to help!

We Are Here To Help!




M-F 8am - 5pm CST


Chat Offline

Why Buy From ZmodoDirect ?

  • Communication: We're real people you can call and talk to!
  • Trust: We're leaders in the Home Surveilance Business.
  • Privacy: We hate Spam, and so won't sell your info.
  • Secure: Your orders are processed on a secure server w/ SSL encryption.

Product Description

This DVR that comes with this kit is on back-order - We'll automatically upgrade you to the next best 16 Ch DVR at no extra charge. The new DVR can viewed here: 16 CH Zmodo DVR w/ QR Code Setup

Our new Zmodo kit KDH6-CARBZ8ZN-1TB  includes a 16 CH H.264  DVR and 8 CMOS Color IR outdoor security cameras allowing you to monitor your home or office around the clock.
The DVR is one of the latest models featuring advanced security functions. With the capacity to record from 16 cameras, it is highly recommended for businesses. It provides basic surveillance function at an affordable price for your security and surveillance needs.
These outdoor CCTV cameras deliver crystal clear video image in daylight, as well as black and white video in darkness up to 65ft away with 24 built-in IR LEDs. This camera is perfect for outdoor and indoor applications, driveways, parking lots, halls, warehouses, and open office areas.


  • IR Image Sensors - Capture video at night up to 65ft away.
  • Remote Access - View from anywhere using Internet Explorer or Netviewer Software
  • Mobile Access - View whats going on from your iPhone®, Windows Mobile® or Android

3D Spin

Zmodo KDH6-CARBZ8ZN-1T Specs



DVR Features

  • Plug-n-Play
  • Record: 480 fps
  • Display: 480 fps
  • Embedded Linux OS
  • IR Remote Control
  • PTZ via RS-485 Port
  • Signal System: NTSC / PAL
  • H.264 Hardware Compression
  • 1TB Hard Drive Installed
  • Video Input / Output: BNC 16/BNC 1
  • Video Output: VGA
  • Audio Input / Output: RCA 4/BNC 1
  • Display Mode: Each / All / Auto Switch / Hidden
  • Network:RJ45 TCP/IP or DDNS
  • Remote Access: LAN or IE Browser
  • Support Remote View via 3G Mobile
  • Recording Mode: Manual/ Schedule /Motion Detection/ Alarm/ Motion Detection & Alarm
Camera Features

  • 600 TV Lines, Horizontal
  • 3.6mm Lens
  • Signal: NTSC
  • Night Vision Min. Light: 0 Lux (IR On)
  • IR Irradiation Distance: up to 65'
  • Operation Temperature: 14°F~122°F
  • Weatherproof: Yes
  • Power: 12V DC
  • Mount: Wall
  • Video Connector: BNC
  • Power Connector: RCA 12V DC

Technical Specs

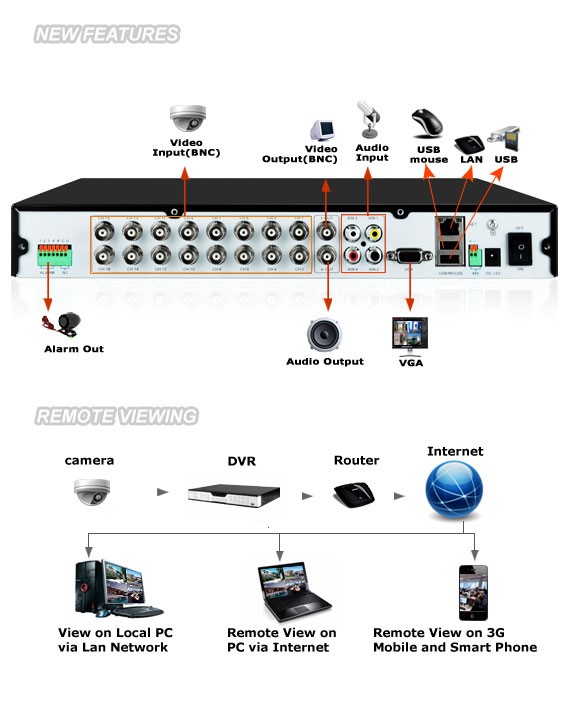

Model ZMD-DC-SBN6 16CH Standalone DVR
Video Compression H.264
Video System NTSC / PAL
Operation System Linux Based
Video Input / Output BNC16-Channel Input/ BNC1-Channel Output
Other Video Output VGA
Audio Input / Output RCA 4-Channel Input/ BNC1-Channel Output
Display Frame Rate NTSC: 480fps@CIF / PAL: 400fps@CIF
Display Resolution NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576)
Recording Frame Rate NTSC: 480 fps@CIF/ PAL: 400 fps@CIF
Record Resolution NTSC: CIF (352 x 240)/PAL: CIF (352 x 288)
Record Mode Manual/ Schedule /Motion Detection/Alarm/ Motion Detection&Alarm supported
3G Mobile Support mobile phone based on Android\ iPhone\ iPad\ IOS\Symbian\Windows Mobile.
Mobile Function 1 Channel Viewer / Channel Switch / Control PTZ
Network Function IE Viewer / Live Monitoring / DVR Setting / Mobile & Email Function
Network RJ45, 10M/100M
Net Protocol IPv4, PPPOE client, DHCP client and TCP/UDP protocol supported.
Remote Access Remote Client Software and IE Browser
PTZ Control RS-485
HDD Interface SATA, Support between 250GB and 2TB
Playback Mode Normal Play, Fast Forward, Fast Rewind, Manual
Sensor/ Alarm 4-ch Sensor Inputs / 1-ch Alarm Output
USB USB Thumb Drive Backup or Upgrade / Mouse / Removable HDD
Mouse Included
Power Supply 12V/5A DC
Power Consumption IR on Max 2000mA
Dimension 354mm (W) x 275mm (D) x 47mm (H)

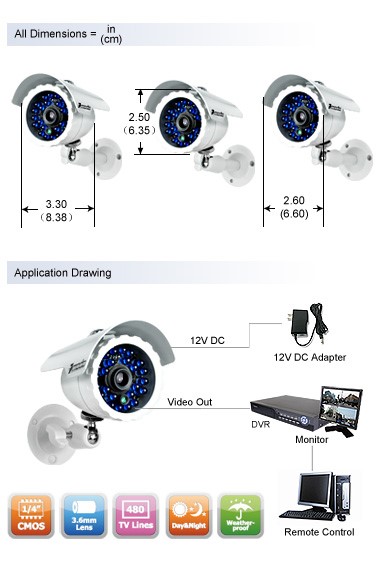

Model ZMD-CBR-BBS23NM(CM-C22623BG)- Color IR Bullet Camera
Image Sensor 1/4" Color CMOS
TV System NTSC / PAL
Effective Pixels NTSC: 768 (H) x 494 (V) / PAL: 752 (H) x 582 (V)
Horizontal Resolution 600 TV-Lines
Lens 3.6mm
Number of IR LEDs 24 LEDs
Infrared Illumination (Night Vision) up to 65ft(15~20m)
Minimum Illumination 0.0 Lux
S/N Ratio 48dB
Video Output 1.0Vp-p, 75ohms
Weatherproof Yes
Operating Temperature 14°F~122°F / -10°C ~50°C
Power 12V DC
Power Consumption IR on Max 150mA
Dimensions (W x D x H) 3.3" x 2.5" x 2.6"
Gross Weight 0.33 lbs
Material Metal Shell

Included With:  KDH6-CARBZ8ZN-1T
