Zmodo 16CH Business Security System & 16 700TVL Cameras-1TB HDD

  • Zmodo 16CH Business Security System & 16 600TVL CCD Cameras-1TB HDD
  • 600 TV Line CCD Camera
  • ZMD-DC-SBN6 16 Channel Security DVR with 1TB HD
  • zmodo ZMD-DC-SBN6 16 Channel Security DVR
25.00 LBS
Current Stock:
Out of stock

Add to Wish List

Click the button below to add the Zmodo 16CH Business Security System & 16 700TVL Cameras-1TB HDD to your wish list.

Our friendly staff is here to help!

We Are Here To Help!




M-F 8am - 5pm CST


Chat Offline

Why Buy From ZmodoDirect ?

  • Communication: We're real people you can call and talk to!
  • Trust: We're leaders in the Home Surveilance Business.
  • Privacy: We hate Spam, and so won't sell your info.
  • Secure: Your orders are processed on a secure server w/ SSL encryption.

Product Description

This DVR that comes with this kit is on back-order - We'll automatically upgrade you to the next best 16 Ch DVR at no extra charge. The new DVR can viewed here: 16 CH Zmodo DVR w/ QR Code Setup

Easily blending into environment and hardly noticeable, as well as upgraded reliable quality images with true colors, this 16 channel video surveillance system is always being on the top of the shopping list for security of apartments, homes and small businesses. The precise dome mounting allow these dome cameras to be mounted on walls or awnings for optimal visibility. Place this compact camera by your front door and see the exact moment that important package you've been waiting for arrives.

This advanced 16 channel complete security solution with 16 hi-resolution (600 TVL) sony ccd night vision cameras that is fully controllable on your Smartphone, Tablet or PC. With motion activated push notifications, email alerts and easy Smartphone access, this Zmodo surveillance system gives you true, 24/7 day or night, video security no matter where you are located in the world.



  • Instant Email Alerts if Activity Detected - This system is designed to send an email alert, complete with photo of the activity, if any motion is detected, or if any camera experiences video loss
  • Easy USB Backup - Built-in USB port provides an easy option to transfer your files to a PC, backup, or send to others.
  • Surveillance in the Palm of Your Hand - View live video streams directly from your supported PC or Smartphone running Android™, iPhone®, iPad®, Symbian™ , Windows Mobile® .

Zmodo KDH6-MARZBZ6N-1T Specs




DVR Features
  • Plug-n-Play
  • Record: 480 fps
  • Display: 480 fps
  • Embedded Linux OS
  • IR Remote Control
  • PTZ via RS-485 Port
  • Signal System: NTSC / PAL
  • H.264 Hardware Compression
  • 1TB Hard Drive Installed
  • Video Input / Output: BNC 16/BNC 1
  • Video Output: VGA
  • Audio Input / Output: RCA 4/BNC 1
  • Display Mode: Each/All/Auto Switch/Hidden
  • Network:RJ45 TCP/IP or DDNS
  • Remote Access: LAN or IE Browser
  • Support Remote View via 3G Mobile
  • Recording Mode: Manual/ Schedule /Motion Detection / Alarm / Motion / Detection & Alarm

Camera Features
  • 1/4" Color Sony  Image Sensor
  • 700 TV Lines, Horizontal
  • 3.6mm Lens
  • Signal: NTSC
  • Night Vision Min. Light: 0 Lux (IR On)
  • IR Irradiation Distance: up to 80'
  • Operation Temperature: 14F~122F
  • Weatherproof: Yes
  • Power: 12V DC
  • Mount: Ceiling or Wall
  • Video Connector: BNC
  • Power Connector: RCA 12V DC
  • Color: Black

Technical Specs

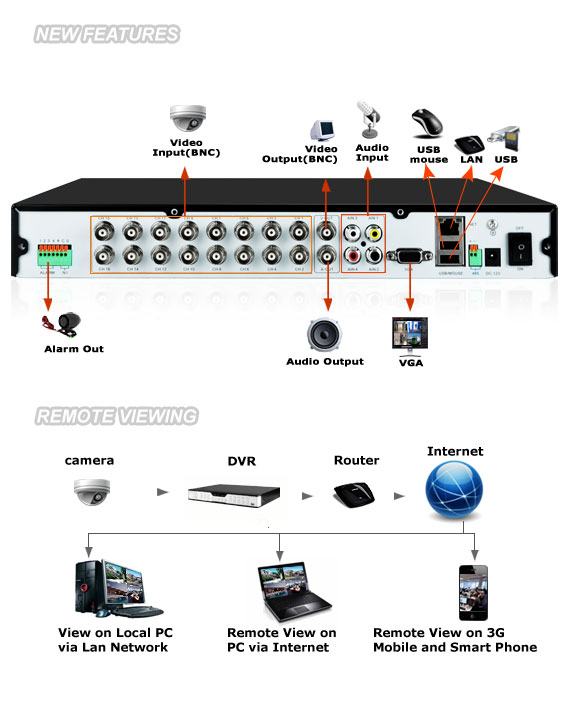

Model ZMD-DC-SBN6 16CH Standalone DVR
Video Compression H.264
Video System NTSC / PAL
Video Input / Output BNC16-Channel Input/ BNC1-Channel Output
Other Video Output VGA
Audio Input / Output RCA 4-Channel Input/ BNC1-Channel Output
Display Frame Rate NTSC: 480fps@CIF / PAL: 400fps@CIF
Display Resolution NTSC: CIF (704 x 480)/ PAL: CIF (704 x 576)
Recording Frame Rate NTSC: 480 fps@CIF/ PAL: 400 fps@CIF
Record Resolution NTSC: CIF (352 x 240)/PAL: CIF (352 x 288)
Record Mode Manual/ Schedule /Motion Detection/Alarm/ Motion Detection&Alarm supported
3G Mobile Support mobile phone based on Android, iPhone or iPad.
Mobile Function 1 Channel Viewer / Channel Switch / Control PTZ
Network Function IE Viewer / Live Monitoring / DVR Setting / Mobile & Email Function
Network RJ45, 10M/100M
Net Protocol IPv4, PPPOE client, DHCP client and TCP/UDP protocol supported.
Remote Access Remote Client Software and IE Browser
PTZ Control RS-485
HDD Interface SATA, Support between 250GB and 2TB
Playback Mode Normal Play, Fast Forward, Fast Rewind, Manual
Sensor/ Alarm 4-ch Sensor Inputs / 1-ch Alarm Output
USB USB Thumb Drive Backup or Upgrade / Mouse / Removable HDD
Mouse Included
Power Supply 12V/5A DC
Power Consumption IR on Max 2000mA
Dimension 354mm (W) x 275mm (D) x 47mm (H)

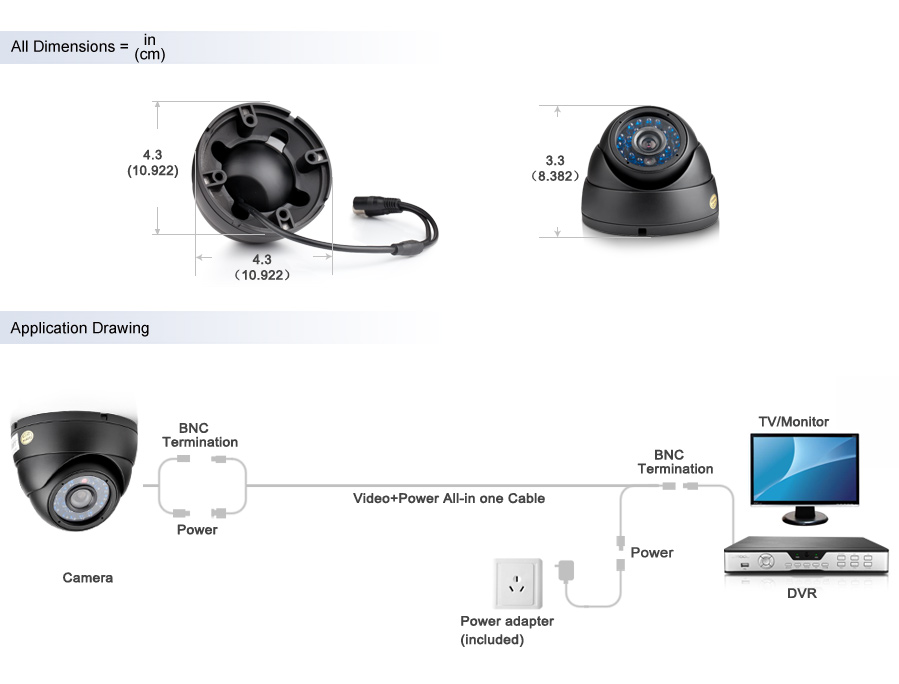

Model ZMD-CMH-DBS23NM- Color IR Dome Camera
Image Sensor 1/4" SONY Color CCD
TV System NTSC
Lens Mount Lens: 3.6mm
Scanning System 2:1 Interlace
Infrared Irradiation Distance 24 Ultra Strong Infrared LEDs- Visible up to 80 ft (20-25m)
Minimum Illumination 0 Lux (IR On)
Horizontal Resolution 600 TV-Lines
Synchronization System Internal Synchronization
S/N Ratio > 48dB
Gamma 0.45
Auto Gain Control Built in
Weatherproof Yes
Vandalproof Yes
Operation Temperature 14°F~122°F / -10°C ~50°C
Power 12V DC
Power Consumption 460mA
Back Light Compensation Auto
Video Out 1.0V p-p 75O BNC Connector
Auto Iris Video / DC
Dimensions 3.3"x4.3"x4.3"

Included With: KDH6-MARZBZ6N-1T





Package Includes

  (1) ZMD-DC-SBN6 16Channel Security DVR

  •  (1) 1TB Hard Drive
  •  (16) ZMD-CMH-DBS23NM Color Security Cameras
  •  (16) 59ft Surveillance Video + Power All-in-one Cable
  •  (4) 12V/1500mA Single Power Supply for Security Cameras
  •  (4) 1-4 Splitter Cable for Security Cameras




Warranty Information

1 Year Warranty
