Zmodo 16 Channel Security DVR with 1TB Hard Drive 4G Viewing

  • ZMD-DC-SBN6-1TB, zmodo, 16 channel, DVR, 1TB
  • zmodo 1TB DVR Security Surveillance
  • Image 3
8.00 LBS

Add to Wish List

Click the button below to add the Zmodo 16 Channel Security DVR with 1TB Hard Drive 4G Viewing to your wish list.

Our friendly staff is here to help!

We Are Here To Help!




M-F 8am - 5pm CST


Chat Offline

Why Buy From ZmodoDirect ?

  • Communication: We're real people you can call and talk to!
  • Trust: We're leaders in the Home Surveilance Business.
  • Privacy: We hate Spam, and so won't sell your info.
  • Secure: Your orders are processed on a secure server w/ SSL encryption.

Product Description

This model is on back-order - We'll automatically upgrade you to the next best 16 Ch DVR which can viewed here: 16 CH Zmodo DVR w/ QR Code Setup


16CH H.264 Smart Security DVR with Internet & Smartphone Monitoring.  The ZMD-DC-SBN6 is one of the best all around DVRs available.  It is equipped with a 1TB Hard drive and has the capacity to record from 16 cameras.  It is a great system at a great price.  View Your Camera Footage from Anywhere in the World with ZMD-DC-SBN6, keep an eye on your business even when you are away. You have the power to access your DVR’s live video footage over the internet or directly from your supported smart phones, including Android™ 2.1 - 2.3, Symbian™ VM & V5, Windows Mobile® 5.5 & 6.1, iPad® IOS & iPhone® or BlackBerry® 7.  This is the perfect DVR for any business.


  • Storage - 1 TB Hard drive which records video from all 16 cameras
  • Remote Access - View activity even when you are away
  • 16 Channel DVR - Add up to 16 cameras

3D Spin

Zmodo ZMD-DC-SBN6-1TB Specs

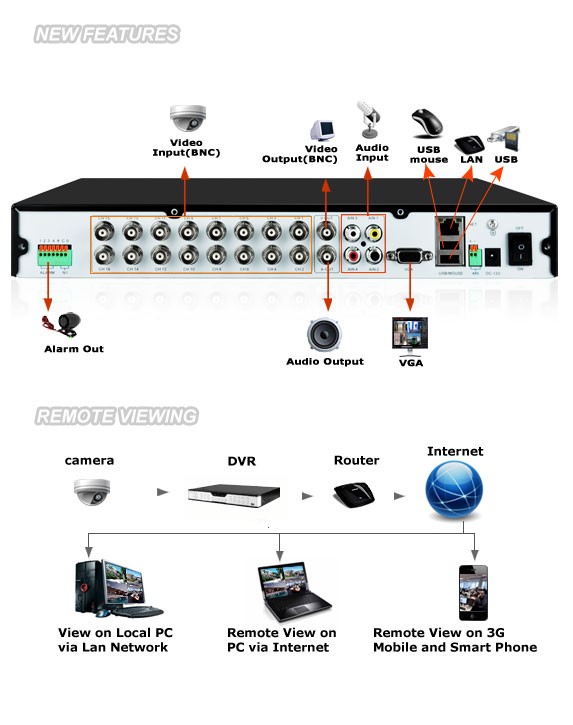

Technical Specs

MODLE: ZMD-DC-SBN6----16 Channel Full CIF Real Time DVR
Video Inputs BNC(1.0Vp-p/75Ω)
Resolution CIF
Live Frame Rate NTSC/PAL:480 fps/400 fps
Multi Screen Display 800×600@60Hz, 1024×768@60Hz, 1280×1024@60Hz, 1440×900@60Hz
Operating System   Linux Based
Recording Compression H.264
Record Rate NTSC: 480 fps @ CIF / PAL: 400 fps @ CIF
Mode Manual/ Continuous/ Motion Detection/Time Scheduled
Search & Playback Search Mode Time & Date, Event List
Playback Function Fast Forward / Rewind /Slow Play
Storage Internal HDD SATA, Support up to 2TB
DVD Writer (Back up) nonsupport
USB (Back up) Flash drive/USB HDD/USB DVD-RW/Network download
File Format (Back up) H.264,MP4,AVI
Smart Phone   iPhone, Android 2.1~2.3,BlackBerry 7, Windows Mobile 5.5~6.1, Symbian V3&V5
Monitors Main Composite CVBS OUT
VGA Support
HDMI nonsupport
Audio Inputs / Output RCA 4-Channel Input / 1-Channel Output
Compression G.726/ADPCM-IMA
Alarm Inputs / Output 4ch Sensor Inputs / 1-ch Alarm Output
Remote Notification nonsupport
Connection Ethernet RJ45(10M/100M self-adaption)
Serial Interface RS-485(PTZ Control)
Application Support remote configuration, video browse, local recording, local and remote playback, and remote PTZ control.
Protocol Support TCP/IP, PPPoE, DHCP,DDNS
Electrical Input Voltage DC12V,5A
  Power Consumption <12W(Without hard disks)
Operating Temperature   14F~122F/-10 °C to 50 °C
Dimensions   13.9in (W) × 10.8in (D) × 1.9in (H)/354mm (W) × 275mm (D) × 47mm (H)
Weight (Without hard disks)   3.66lbs
Language   11 Language

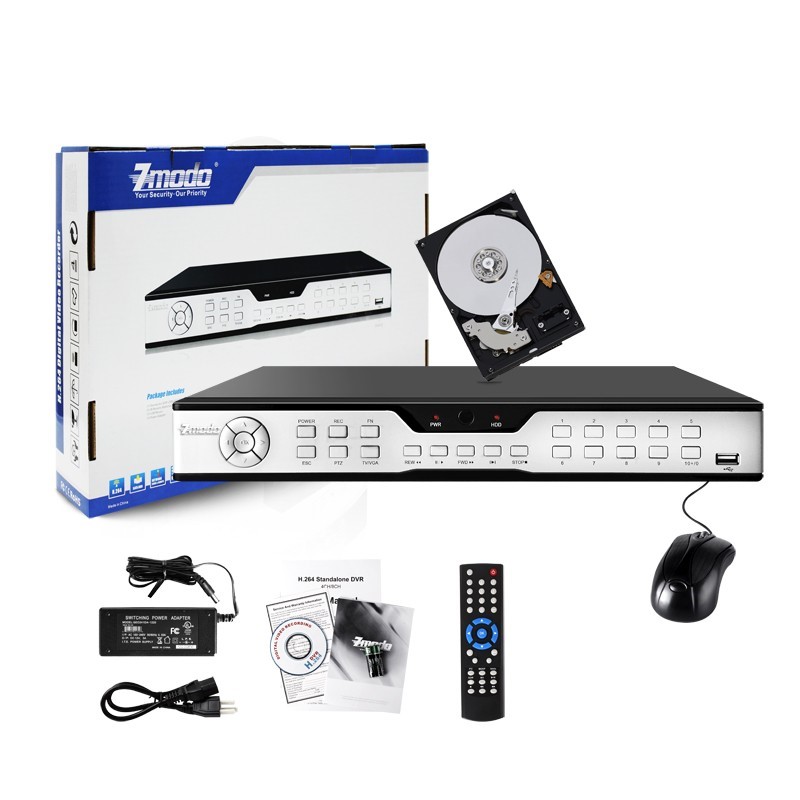

Included With: ZMD-DC-SBN6-1TB

zmd-dc-sbn6-1tb-dvr-included-with-image.jpg     Included with DVR
  • (1) ZMD-DC-SBN6 CCTV Security DVR
  • (1) 1TB Hard Drive Included
  • (1) IR Remote Control & Mouse
  • (1) Power Supply for DVR
  • (1) User's Manual
  • (1) CD Software

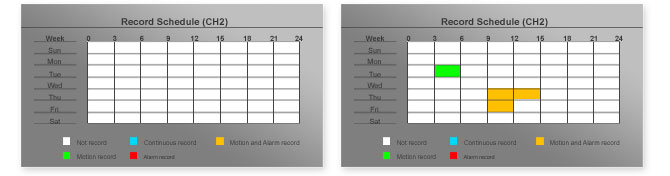

Multiple Recording ModesZMD-DC-SBN6 supports various kinds of recording modes, including manual recording, scheduled recording, motion detected recording, alarm triggered recording and alarm/motion detection triggered recording.

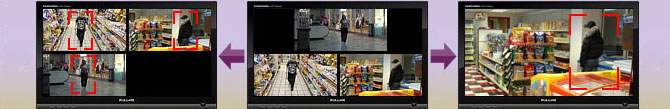

Multiple Viewing Modes SwitchingSix viewing modes allow you to view 4, 6, 8, 9 or 16 cameras at once on a split screen, or view only 1 camera at a time.

Advanced Motion Activated RecordingThe motion detection option allows you record only when motion is detected so that you save hard drive space without missing important events. You can even ensure that false alarms are not triggered as the easy motion detection “mask” allows you to block out areas with constant movement.


Instant Email Alerts if Activity DetectedOnce the motion detection sensitivity meets alarm conditions, email will be sent immediately with the attachment of the caught snapshot. Once the FTP is set, FTP will upload the file after the alarm, and FTP server will receive the caught snapshot.

Multi-Tasking FunctionalityThe multi-tasking feature allows up to five functions to occur on the system at one time: record video, watch live video, playback video while also monitoring and managing the system remotely, and also backing up files.Easy USB BackupA built-in USB port gives you the option of backing up and transferring your video footage with a USB flash drive or external USB hard drive.Search by Date, Time or EventSimply choose the desired date and time range, and the requested video clips will appear. Clips are also labeled by event, which makes it easy to find particular footage.Connect to a TV or PC MonitorVGA and BNC output allows you to connect to any PC monitor or TV monitor for viewing purposes. This gives you more options when viewing the activity captured by your cameras.1TB HDD Included1TB hard drive included in this DVR can record up to eight days continuously with full 30fps on all the 16 channels.


Warranty Information

1 Year Warranty
