New Zmodo 4CH 960H DVR System w/ 4 700TVL IR Cameras & 1TB HDD
Our friendly staff is here to help!
John
Why Buy From ZmodoDirect ?
- Communication: We're real people you can call and talk to!
- Trust: We're leaders in the Home Surveilance Business.
- Privacy: We hate Spam, and so won't sell your info.
- Secure: Your orders are processed on a secure server w/ SSL encryption.
Browse Other Options
Product Description
THIS ALL NEEDS TO BE UPDATED!!!
The 4 channel Security DVR included in the package not only allows you to view live, record and playback full screen video in real-time (30fps per channeL) at D1 resolution, also offers you the option of high quality live viewing and recording that is a 34% increase over standard D1 resolution. Coupled with 700TVL high resolution night vision cameras, this premium system offers a larger, sharper, undistorted image with a truer aspect ratio that enhances surveillance.
Get connected in no time and start using your smart phone, tablet, PC to connect, view and control your entire system from anywhere in the world.
960H is a new standard for security DVRs that provides high resolution images at an image size of 960 pixels horizontal and 480 pixels vertical. The DVR offers 960H (960x480) real-time recording on all 4 channels at 30fps.
Benefits
- Plenty of Recording Time - INCLUDES 1TB HARD DRIVE
- Higher Resolution - 960H DVR provides superior images that are 34% larger than D1 and more than 500% larger than CIF.
- True Aspect Ratio - 960H creates a wide-screen picture that does not need to be stretched to fit wide-screen TV's and monitors.
- Sharper Picture - Recording larger images provides a greater amount of image detail. Images are sharper and shows more detail in objects and colors.
Zmodo ZM-I4Y4-1T Specs
Features
Weatherproof
Cameras perform both in outdoor and indoor applications with professional-grade aluminum housing and sunshade.
IR-Cut
Cameras are built-in IR-Cut, which provides accurate color reproduction in all lighting conditions with crisp and detailed image quality you can rely on.
Pentaplex
Pentaplex operation - view, record, playback, back up, mobile phone view and remote access simultaneously.
Multiple Recording Modes
Continuous recording, time scheduled recording, motion detected recording and alarm triggered recording are available for your choice. Also protect your privacy using the “Mask” feature. Your privacy is just as important as your security.
Instant Email Notification
Receive instant email alerts when motion is detected, alarm is triggered, video loss occurs, etc.
Convenient Backup
Easily transfer video files from the surveillance system to a PC, Flash Drive or USB Hard Drive in order to free-up space for new video while retaining important footage.
Multi-Level, Multi-User Management
Admin user takes the highest authority and controls every function. You can share the video to your friends or family but still no need to worry about the safety of the data.
Multiple Viewing Options
View all cameras at once on a split-screen, or view 1 camera at a time on full screen with the option to cycle through each of the cameras at a customizable speed.
Playback Modes
Supports normal playback, fast forward playback, rewind playback, manual single-frame playback, you can also simply drag the playback progress bar to quickly locate the playback time. It also supports multi-channel playback simultaneously, and each channel can be enlarged into full screen.
Easy Search Options
In order to easily pinpoint an event, this DVR allows you to search recorded video by time, motion detection event or alarm triggered event.
User-Friendly Navigation
The easy to use interface, along with the accompanying mouse and remote, make moving through menus a breeze.
Technical Specs
|
ZM-I4Y4-1T
| |
|---|---|
| SYSTEM | |
| Pentaplex | Simultaneous View, Record, Playback, Backup & Remote Monitoring |
| INPUTS/OUTPUTS | |
|---|---|
| Video In | 4x 1Vp-p, CVBS, 75ohms, BNC |
| USB Port | 2 at The Back |
| PTZ Control | RS-485 |
| DISPLAY | |
|---|---|
| Live Display | 1, 4, 8 |
| Live Display Speed | 240 NTSC / 200 PAL |
| GUI OSD | Yes |
| System Navigation | USB Mouse, IR Remote Controller, Front Panel |
| RECORDING | |
|---|---|
| Video Compression | H.264 |
| Audio Compression | G.711 |
| Recording Resolution | 960H:960×480 pixels with 14 FPS (NTSC) /960×576 pixels with 12 FPS (PAL) D1:704×480 pixels with 30 FPS (NTSC) /704×576 pixels with 25 FPS (PAL) HD1:704×240 pixels with 30 FPS (NTSC) /704×288 pixels with 25 FPS (PAL) CIF:352×240 pixels with 30 FPS (NTSC) /352×288 pixels with 25 FPS (PAL) |
| Record Mode | Manual / Time Scheduled / Alarm Triggered / Motion Detect |
| Recording Resolution Setting | Per Camera for Different Resolutions |
| Recording Quality Control | Six Grades Optional |
| Pre Recording | Max. 10 Secs |
| Reliability | Auto-Recovery After Power Failure |
| PLAYBACK | |
|---|---|
| Sync Playback | 8-CH |
| Playback Function | Normal Play /Speed Play/ Fast Back Play/ Manual Single-frame Slow Play/ Digital Zoom |
| STORAGE & ARCHIVE | |
|---|---|
| Storage | 1 SATA HDD (3.5") |
| Maxinum Capacity | Up to 1x 2TB |
| Backup Media | USB Flash drive, USB Hard Disk and Network Backup |
| Backup File Format | H.264 file (AVI Generator Included) |
| CONNECTIVITY | |
|---|---|
| Supported Operating Systems | Windows™ XP, Vista, 7 , 8 Limited Functionality on a Mac, Tested on both Snow Leopard 10.6.8 and Mavericks |
| Browsers | Firefox, Chrome, Internet Explorer or Safari |
| Email Notification | Text with Snapshot |
| Instant Smart Phone Compatibility | Smart Phone & Tablet Compatibility: iPad , iPhone, Android |
| Network Protocol | TCP/IP/ PPPoE /DDNS /FTP / NTP / UPNP |
| Network Interface | 1 RJ45 10/100M |
| GENERAL | |
|---|---|
| Supply Voltage | DC 12V 2A |
| Unit Dimensions | 10.19in (W) x 8.7in (D) x 1.7in (H) / 259mm (W) x 221mm (D) x 44mm (H) |
| Unit Weight | 3.83lbs |
|
ZMD-CBH-BUS23NM
| ||
|---|---|---|
| Image Sensor | 1/4" Color CMOS | |
| TV System | NTSC / PAL | |
| Effective Pixels | PAL: 967Hx494V NTSC:960Hx582V | |
| Horizontal Resolution | 700 TV-Lines | |
| Lens | 3.6mm | |
| Number of IR LEDs | 24 PCS | |
| Infrared Illumination (Night Vision) | up to 80ft (20~25m) | |
| Minimum Illumination | 0.1Lux(IR LED On) | |
| S/N Ratio | ≥ 48dB | |
| Video Output | 1.0Vp-p, 75ohms (BNC) | |
| Auto White Balance | On | |
| Weatherproof | Yes | |
| Operating Temperature | 14°F~122°F / -10°C ~50°C | |
| Power | 12V DC | |
| Power Consumption | Max. 5W | |
| Dimensions (W x D x H) | 124*70*70mm(4.9" x 2.8" x 2.8") | |
| Gross Weight | 0.44 lbs | |
| Color | Light Grey | |
| Material | Aluminum Alloy | |

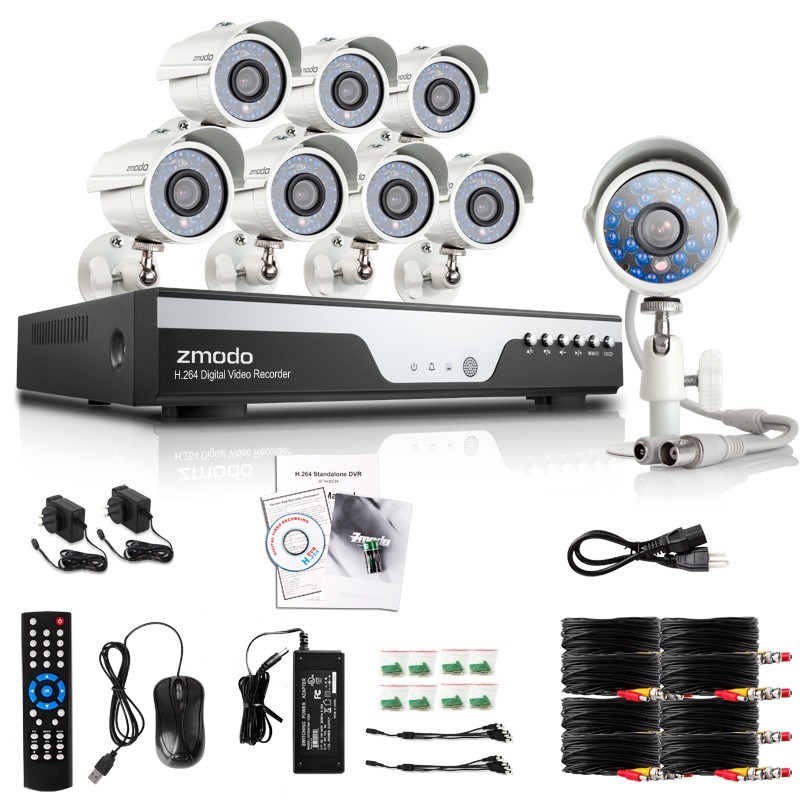

Included When 4 Camera Option Selected Above
Included When 8 Camera Option Selected Above
+|
ZMD-CBH-BUS23NM
|
|---|
