8CH DVR 4 Vandal-proof 700TVL 65ft IR Surveillance Kit 1TB Drive

  • Zmodo 4 channel system with 4 dome cameras
  • Zmodo 4 channel system with 4 dome cameras
  • Zmodo 4 channel system with 4 dome cameras
  • H9108V DVR 8 Channel
  • 8 Channel DVR Zmodo
  • CM-N22203BK
  • CM-N22203BK
Your Price:
$249.95 (You save $150.00)
15.00 LBS
Current Stock:
Out of stock

Add to Wish List

Click the button below to add the 8CH DVR 4 Vandal-proof 700TVL 65ft IR Surveillance Kit 1TB Drive to your wish list.

Our friendly staff is here to help!

We Are Here To Help!




M-F 8am - 5pm CST


Chat Offline

Why Buy From ZmodoDirect ?

  • Communication: We're real people you can call and talk to!
  • Trust: We're leaders in the Home Surveilance Business.
  • Privacy: We hate Spam, and so won't sell your info.
  • Secure: Your orders are processed on a secure server w/ SSL encryption.

Product Description

With this kit (KDB8-MARZBZ4N-1TB) you are receiving some of the best quality products on the market today. The 8 channel DVR allows for up to 8 cameras to be viewed at once and is easy use for anyone. It comes with a 1TB hardrive allowing for weeks of record time. Also it offers different recording modes such as continuous recording, scheduled recording, motion detected recording or a combination of these so that you can customize your surveillance. This kit comes with 4 top of the line durable vandal proof CCD Dome cameras. They employ a 1/4" Sony CCD solid-state image device which provides high quality image day and night.


  • Vandal Proof - The cameras are vandal and weatherproof being able to resist the toughest forces and rain.
  • Remote Viewing - This 8 channel DVR offers a remote viewing capability so you can see whats going on with your smartphone or 3G mobile technology.
  • Quality - Recieving high quality at a low price.

3D Spin

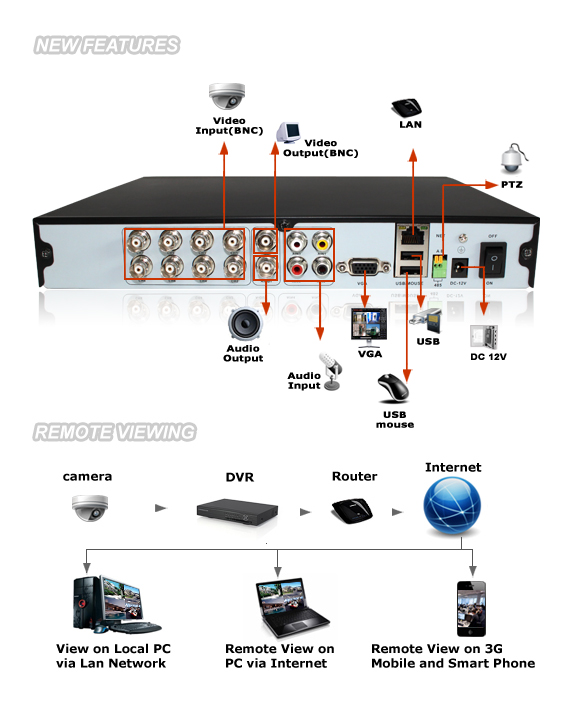

DVR Features
  •  Embedded Linux OS
  •  H.264 Hardware Compression
  •  1TB Hard Drive Pre-installed
  •  Video Input / Output: BNC 8/ BNC 1
  •  Two Type Video Out: TV Monitor BNC Output and PC Monitor VGA Output
  •  Audio Input / Output: RCA 4/BNC 1
  •  Signal System: NTSC / PAL
  •  Display: 240 fps
  •  Record: 240 fps
  •  Recording Mode: Continuous / Time Scheduled / Motion Detected
  •  Display Mode: Each / All / Auto Switch / Hidden
  •  Playback Search: Time & Date, Event List
  •  Network: RJ45 TCP/IP or DDNS
  •  Remote Access: Internet Explorer or Netviewer Software
  •  PTZ via RS-485 Port
  •  Plug-n-Play
  •  Supports Remote View via smart phone & 3G mobile:
  1.  Android™
  2.  iPhone® & iPad® IOS
  3.  Symbian™
  4.  Windows Mobile®

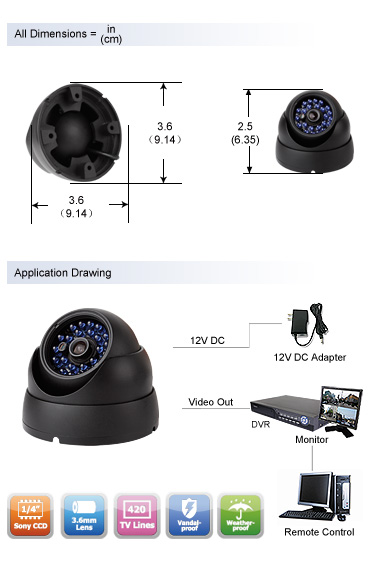

Camera Features
  •  3.6mm Lens
  •  Signal: NTSC
  •  Iris: Auto
  •  Power: 12V DC
  •  Color: Black
  •  Vandal and Weatherproof
  •  Mount: Ceiling or Wall
  •  Video Connector: BNC
  •  Power Connector: RCA 12V DC
  •  600 TV Lines, Horizontal
  •  IR Irradiation Distance: 65' (20m)
  •  Operation Temperature:-25F~122F
  •  1/4" Sony Color CCD Image Sensor
  •  Night Vision Min. Light: 0 Lux (IR On)

Technical Specs


Included With: KDB8-MARZBZ4N-5G


Package Includes

  •  (1) ZMD-DD-SBN8-1TB(DVR-H9108V-1TB) 8 Channel Security DVR with 1TB HD
  •  (4) ZMD-CNR-DBS23NM (CM-N22203BK) Color Security Cameras
  •  (4) 60ft Surveillance Video + Power All-in-one Cables
  •  (1) 12V/1500mA Single Power Supply for Security Cameras
  •  (1) User's Manual

Supercedes SKU KDS8-NARZBZ4N-500GB

Warranty Information

1 Year Warranty

Find Similar Products by Tag

8 channel  camera  CCTV  dome  dvr  kit  system

Find Similar Products by Category

write a review

Product Reviews

  1. good company 4 Star Review

    Posted by on 24th Apr 2013

    I've worked with this company for years now and have nothing to say but good things, however just ran into my first factory defect with the dvr. Ran good for couple of hours but then started beeping over and over. Just shiped it back, and hope they get it back to me fast.....

  2. Great Value Easy Set Up 5 Star Review

    Posted by on 22nd Feb 2013

    This is my second system in the last 18 months and this one is much easier to set up and the instructions are easy to understand. The first one gave me trouble after the first 6 months and finally went out last week. This is an 8 ch and cheaper that the 4 ch I had. would recommend to anyone on a budget and needing a good system. Thanks Zmodo


    Posted by on 16th Feb 2013

    I searched security systems for two solid weeks. Zmodo is the best one i found.The cameras work good, the dvr and cameras are easy to set up, and when they say "the zmodo complete kits come with everything you need to be up and running" is completely true. The only thing that i had to get was a $5 video adapter!

  4. Great product for the price. 4 Star Review

    Posted by on 2nd Feb 2013

    The is a good system for the price. The picture quality is surprisingly good. Customer service told me the viewing angle for the camera was 90 degrees, turns out it is about 70 degrees. The instructions were good enough for the initial set up but I had to get technical support to set up the network to view online or 3G, and still havent worked out all the kinks for online viewing. Overall, it is as advertised and I would recommend this product for home security.
