4 Channel CCTV Real-Time DVR Security Camera System w/ 4 Cameras No Hard Drive

  • Zmodo 4 Channel with 4 cameras
  • Zmodo 4 Channel DVR with Buttons
  • Zmodo 4 Channel DVR with Buttons Top
  • Zmodo 4 Channel DVR back
  • CM-C22623BG
  • Outdoor IR Security Camera
  • Splitter Cable for security cameras
Your Price:
$139.95 (You save $88.04)
15.00 LBS
Current Stock:
Out of stock

Add to Wish List

Click the button below to add the 4 Channel CCTV Real-Time DVR Security Camera System w/ 4 Cameras No Hard Drive to your wish list.

Our friendly staff is here to help!

We Are Here To Help!




M-F 8am - 5pm CST


Chat Offline

Why Buy From ZmodoDirect ?

  • Communication: We're real people you can call and talk to!
  • Trust: We're leaders in the Home Surveilance Business.
  • Privacy: We hate Spam, and so won't sell your info.
  • Secure: Your orders are processed on a secure server w/ SSL encryption.

Product Description


The kit KDS4-BARBZ4ZN includes a 4 CH H.264 standalone DVR and four night vision outdoor security cameras. All cables and power supplies are included.

This 4 channel security DVR is a fully integrated, real time, and hardware based standalone digital video recorder. With video/audio input/output, motion detection, 3G live view, network access, PTZ camera control and USB2.0 backup, this 4CH security DVR is perfect for the home or small business.

These outdoor CCTV cameras in the kit delivers crystal color video image in daylight, as well as black and white video in darkness up to 65ft away with 24 built in IR LEDS, which are perfect for outdoor and indoor application for driveways, parking lots, halls, warehouses, and open office areas.


  • Customization - You are able to put the size hard drive you want in that suits our needs.
  • Camera clarity - The cameras included in this kit have the clear picture you need with up to 65ft in night time.
  • Remote viewing - This system allows you to view whats going on through your smartphone or tablet.




DVR Features
  • H.264 Hardware Compression
  • Video Input / Output: BNC 4/BNC 1
  • Video Output: VGA
  • Audio Input / Output: RCA 4/BNC 1
  • Recording Mode: Continuous/Scheduled/Motion
  • PTZ via RS-485 Port

Supports Remote View via Smartphone & 3G Mobile with each of those systems below:
a) iPhone®
b) Google Android™ 2.1 ~ 2.3
c) Blackberry® 7
d) Windows Mobile™ Pro 5.5 ~ 6.1
e) Symbian® V3 & V5

Camera Features
  • 1/4" Color CMOS Image Sensor
  • 600 TV Lines, Horizontal
  • 3.6mm Lens
  • Signal: NTSC
  • Night Vision Min. Light: 0 Lux (IR On)
  • IR Irradiation Distance: up to 65'
  • Operation Temperature: -25°F~122°F
  • Weatherproof: Yes
  • Power: 12V DC
  • Mount: Ceiling or Wall
  • Video Connector: BNC
  • Power Connector: RCA 12V DC

Technical Specs

Model KDS4-BARBZ4ZN - Full D1 4CH StandAlone DVR
Video Compression H.264
Video System NTSC / PAL
Operation System Linux Based
Video Input / Output BNC 4-Channel Input /BNC1-Channel Output
Other Video Output VGA
Audio Input / Output RCA 4-Channel Input /BNC1-Channel Output
Display Frame Rate NTSC: 120 fps @ D1 / PAL: 100 fps @ D1
Display Resolution NTSC: D1 (704 x 480) / PAL: D1 (704 x 576)
Recording Frame Rate NTSC: 120 fps @ D1 / PAL: 100 fps @ D1
Record Resolution Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288)
Record Mode Continuous / Time Schedule / Motion Detection
Network RJ45, 10M/100M
Net Protocol TCP/IP, PPPoE, DHCP and DDNS
Remote Access LAN or Internet Browsing
PTZ Control RS-485
HDD Interface SATA, Support between 250GB and 2TB
Playback Mode Normal Play /Fast Forward /Fast Rewind/ Frame by Frame
USB USB Backup / USB 2.0
Remote Control Not Included
Power Supply 12V/3A DC
Power Consumption IR on Max 1000mA
Dimension 290mm (W) x 205mm (D) x 42mm (H)

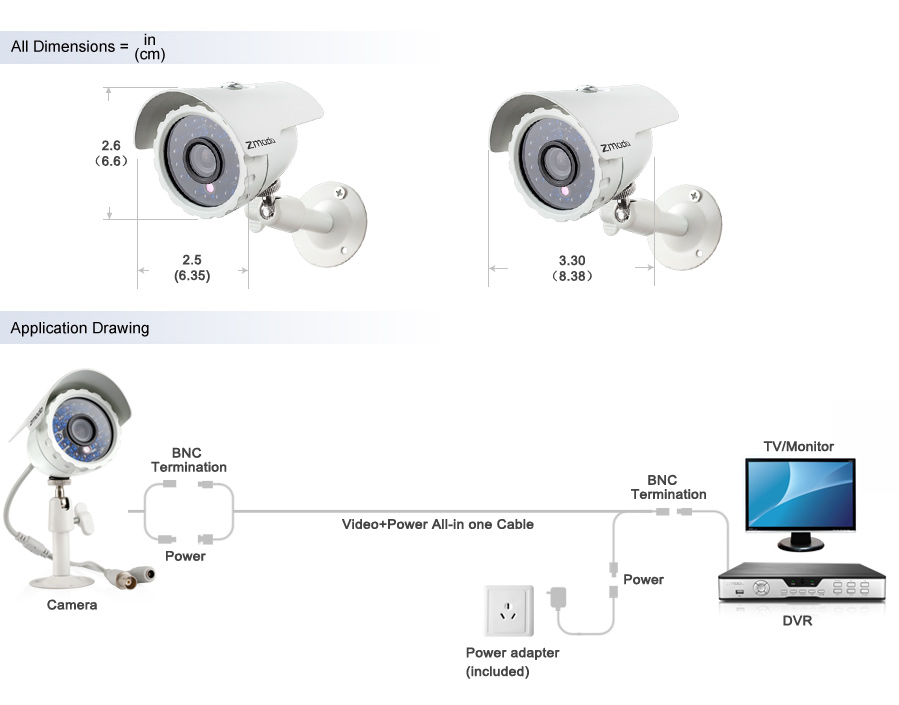

Model CM-P12316SV- Color IR waterproof security camera
Image Sensor 1/4" Sharp Color CCD
TV System NTSC
Effective Pixels NTSC: 512 (H) x 492 (V)
Horizontal Resolution 600 TV-Lines
Lens 6mm
Number of IR LEDs 24 LEDs
Infrared Illumination (Night Vision) up to 65ft
Minimum Illumination 0.0 Lux
S/N Ratio > 45.6dB
Video Output 1.0Vp-p, 75ohms
Weatherproof Yes
Operating Temperature 14°F~122°F / -10°C ~50°C
Power 12V DC
Dimensions (W x D x H) 3.5" x 2.6" x 3"
Gross Weight 0.48 lbs
Material Aluminum

Warranty Information

1 Year Warranty

Find Similar Products by Tag

4 channel  camera  dvr  outdoor  security  system  zmodo

Find Similar Products by Category

write a review

Product Reviews

  1. A system that finally works 5 Star Review

    Posted by on 21st Jun 2012

    I have been buying Zmodo systems from this company for the past year and if it wasn't for the price and support i would have to say the kit cameras SUCK! However, the DVR's are great and what you get for the price is actually a super deal. I Just got this new system with the white cameras and OMG you guys finally got the night vision and wide angle lens correct! Thanks Zmodo for doing this i will be buying only these from now on.

    Anthony K

  2. Amazing system for the price! 5 Star Review

    Posted by on 23rd May 2012

    I have seen a demo of this system at the last trade show and must say this is by far the best kit Zmodo has come out with yet. The picture quality of the cameras is outstanding. I will be buying a few more within the next couple weeks.
