16CH High Resolution 960H DVR w/ HDMI & QR Code Setup- Optional 2TB Hard Drive

  • Zmodo ZMD-DT-SJN6
  • Image 2
  • Record up to 16 Cameras simultaneously. Record audio on up to 2 microphones. HDMI port allows connection to hi def TV's & monitors. You can also use VGA or BNC connection to display video on up to 3 different monitors at a time.
  • Image 4

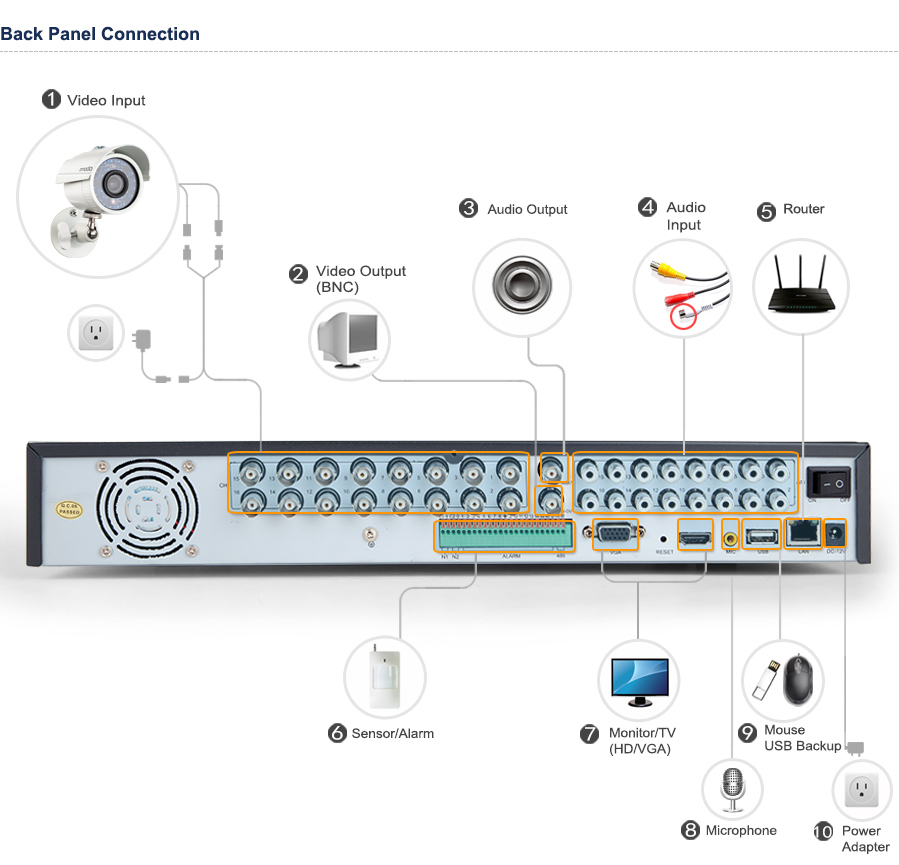

  • Zmodo 16 Ch DVR Back
Price:
$369.95
SKU:
ZMD-DT-SJN6
Brand:
Weight:
6.00 LBS
Shipping:
Zmodo Free Shipping
Current Stock:
Out of stock

Sorry but this item is currently unavailable.

Please check back at a later stage.

Our friendly staff is here to help!

We Are Here To Help!

John

Call

866.242.0620

M-F 8am - 5pm CST

Chat

Chat Offline

Why Buy From ZmodoDirect ?

  • Communication: We're real people you can call and talk to!
  • Trust: We're leaders in the Home Surveilance Business.
  • Privacy: We hate Spam, and so won't sell your info.
  • Secure: Your orders are processed on a secure server w/ SSL encryption.


Product Description

This Zmodo 16 channel Security DVR is the very top of the line digital video recorder. You simply cannot find an analog based video transmission system that can record video in a higher resolution. This DVR records all channels simultaneously at a whopping D1 (approximately 704 x 480 pixels) resolution and at 30 frames per second (real time). You can also set at 15fps speed to get amazing 960H(approximately 960 x 480 pixels) resolution. It provides a recording resolution that further closes the gap between the high definition resolution of expensive state-of-the-art systems and the conventional resolution of analog systems.

Benefits

  • Compatibility - Compatible with MAC computer via Safari as well as PC's
  • HDMI Outputs - Connect to compatible HD TV's & Monitors with ease for a higher quality picture.
  • Alerts! - Instant email alerts send you a snap shot of what triggered the alarm.

Features

  • Full D1 Recording resolution, 960H per 15fps, or D1/HDI/CIF/QCIF supported
  • H.264 video compression
  • Real time recording 30fps per channel: 8ch @ (704x480)
  • Pentaplex operation - View, Record, Playback, Back Up & Remotely Control the system simultaneously
  • PTZ cameras supported (RS485), controllable remotely via App
  • Instant Mobile Viewing on compatible Smart Phones & Tablets
  • PC and Mac(via Safari) compatible
  • Instant email alerts with snap shot attachment
  • Digital zoom allows you to get a closer view while in live viewing full screen mode
  • Unique continuous recording with motion activated visual alerts inform you when motion is detected (e.g. when someone enters your store). No longer do you have to make a choice between continuous or motion recording option.
  • HDMI output (HDMI cable not included) for convenient connection to HD TVs.
  • Keep in Touch with your world. PC or Mac to connect, view and control your system remotely.
  • Simple to use Apps with multi-camera live viewing and instant connection allows you to keep an eye on the things that matter to you most
  • PTZ camera supported - connect a Pan/Tilt/Zoom camera and easily set tours and pre-sets to monitor a wider area of your property.
  • Record on a reliable 24/7 100% duty HDD (Hard Disc Drive).
  • Customize the recording settings to fit your needs. Record at 960H (960x480) for highest resolution or set to a lower resolution for extended recording time (720 x 480, 720 x 240 or 360 x 240).
  • A total of 3 video outputs (HDMI, VGA, BNC) allows you to connect to multiple monitors simultaneously. Ideal for business applications where you have the DVR in the back office as well as a public view monitor.
  • Digital zoom allows you to get a closer view while in live viewing full screen mode.
  • Unique continuous recording with motion activated visual alerts inform you when motion is detected (e.g. when someone enters your store). No longer do you have to make a choice between continuous or motion recording option.

Technical Specs

ZMD-DT-SJN6
Video and Audio Input
Analog Video 16-CH, BNC
Audio 16-CH RCA + 1-CH MIC 3.5mm
Video and Audio Output
HDMI 1-CH, 1920x1080@60Hz
VGA 1-CH, 1920x1080@60Hz, 1280x1024@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1366x768@60Hz
CVBS 1-CH BNC, PAL: 704x576, NTSC: 704x480
Audio 1-CH BNC
Video and Audio Codec
Video Compression H.264
Audio compression G.711
Frame Rate NTSC:30fps, PAL:25fps
Multiple stream Yes
Video resolution 960H, D1, HD1, CIF
System
Application support IE Viewer / Live Monitoring / Parameter Setting /Recording/ Playback/ Mobile/ Alarm Function
Recording Management
Sync Playback 4-CH
Playback Function Fast forward / Rewind / Slow play / Digital Zoom
Record mode Normal Recording / Intelligent Recording / Motion Detected Recording / External Alarm Triggered Recording
Backup USB devices
Hard Disk Driver
Interface type 3 SATA (3.5")
Capacity Up to 4TB each
Network
Network interface 1 RJ45 10/100M
Protocol support TCP/IP, UDP, DNS/DDNS, SMTP, UPNP, DHCP, HTTP, P2P, etc.
Smart phone iOS 6.0 up, Adroid 2.3 up
Video Detection and Alarm
Motion detection Yes
Alarm inputs/output 16-CH / 2-CH
Auxiliary Interface
Reset button Yes
USB interface 3 USB 2.0 (1 Rear: the rear one can't be used with USB2 at the same time)
Serial Interface RS-485 (PTZ Control)
General
Power supply DC12V, 5A
Power consumption <12W(Without hard disks)
Operating temperature −10°C to 50 °C (14°F to 122°F)
Dimensions 15.7in (W) x 12.2in (D) x 2.28in (H)/400mm (W) x310mm (D) x 58mm (H)
Weight 5.77lbs
Language 11 languages

Included With: ZMD-DT-SJN6-1TB

  • (1) ZMD-DT-SFN6 16CH CCTV Security DVR
  • (1) ***Optional***1TB or 2TB Hard Drive Installed
  • (1) IR Remote Control & Mouse
  • (1) Power Supply for DVR
  • (1) User's Manual
  • (1) CD Software

Supercedes ZMD-DT-SCN8


Warranty Information

1 Year
