16CH DVR with 1TB HDD & 8 White 600 TVL Sony 65' IR Outdoor Security Cameras

  • KDH6-NARBZ8ZN-1TB 16 channel Surveillance System
  • 16 Channel Zmodo DVR Recorder
  • CCTV Ports for security cameras
  • DVR box and accessories
  • Image 5
Please Check the 16CH DVR Kit Category for our Most up to date offering
20.00 LBS

Add to Wish List

Click the button below to add the 16CH DVR with 1TB HDD & 8 White 600 TVL Sony 65' IR Outdoor Security Cameras to your wish list.

Our friendly staff is here to help!

We Are Here To Help!




M-F 8am - 5pm CST


Chat Offline

Why Buy From ZmodoDirect ?

  • Communication: We're real people you can call and talk to!
  • Trust: We're leaders in the Home Surveilance Business.
  • Privacy: We hate Spam, and so won't sell your info.
  • Secure: Your orders are processed on a secure server w/ SSL encryption.

Product Description

This DVR that comes with this kit is on back-order - We'll automatically upgrade you to the next best 16 Ch DVR at no extra charge. The new DVR can viewed here: 16 CH Zmodo DVR w/ QR Code Setup

This kit KDH6-NARBZ8ZN-1TB includes a 16 CH H.264 DVR and 8 Sony ColorIR outdoor security cameras allowing you to monitor your home or office around the clock.

This DVR is one of the latest 16 CHs featuring advanced security functions. With the capacity to record from 16 cameras, it is highly recommend for businesses. It provides the basic surveillance function at an affordable price for your security and surveillance needs.

These outdoor CCTV cameras deliver crystal clear video image in daylight, as well as black and white video in darkness up to 65ft away with 24 built in IR LEDs. This camera is perfect for outdoor and indoor applications, driveways, parking lots, halls, warehouses, and open office areas.


  • Night Vision - View black and white video in the dark up to 65ft away!
  • 600 TVL Cameras - Enjoy a Crisper and clearer picture than your standard low-res cameras
  • USB Ports - Move video footage over to a USB drive with ease!

3D Spin

Zmodo KDH6-NARBZ8ZN-1TB Specs



DVR Features

  • Plug-n-Play
  • Record: 480 fps
  • Display: 480 fps
  • Embedded Linux OS
  • IR Remote Control
  • PTZ via RS-485 Port
  • Signal System: NTSC / PAL
  • H.264 Hardware Compression
  • 1TB Hard Drive Installed
  • Video Input / Output: BNC 16/BNC 1
  • Video Output: VGA
  • Audio Input / Output: RCA 4/BNC 1
  • Display Mode: Each/All/Auto Switch/Hidden
  • Network:RJ45 TCP/IP or DDNS
  • Remote Access: LAN or IE Browser
  • Support Remote View via 3G Mobile
  • Recording Mode: Manual/ Schedule /Motion Detection / Alarm / Motion / Detection & Alarm

Camera Features

  • Sony Image Sensor
  • 600TV Lines, Horizontal
  • 3.6mm Lens
  • Signal: NTSC
  • Night Vision Min. Light: 0 Lux (IR On)
  • IR Irradiation Distance: up to 65'
  • Operation Temperature: -25°F~122°F
  • Weatherproof: Yes
  • Power: 12V DC
  • Mount: Ceiling or Wall
  • Video Connector: BNC
  • Power Connector: RCA 12V DC

Technical Specs

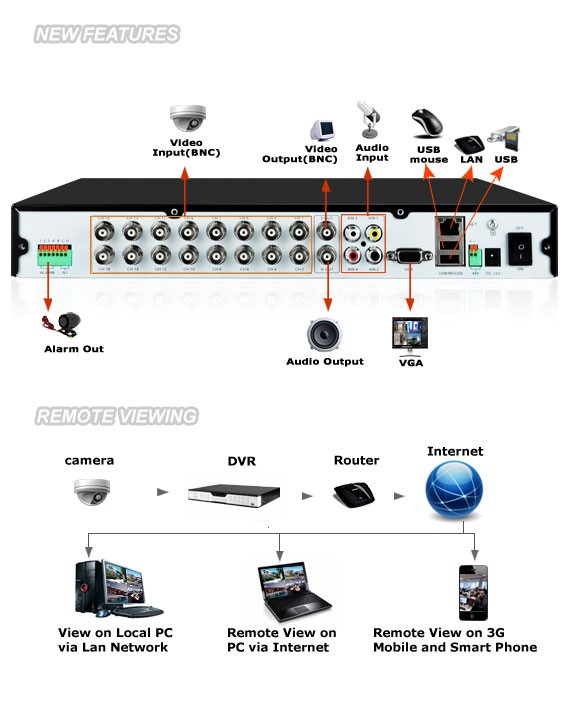

Model ZMD-DC-SBN6 16CH Standalone DVR
Video Compression H.264
Video System NTSC / PAL
Operation System Linux Based
Video Input / Output BNC16-Channel Input/ BNC1-Channel Output
Other Video Output VGA
Audio Input / Output RCA 4-Channel Input/ BNC1-Channel Output
Display Frame Rate NTSC: 480fps@CIF / PAL: 400fps@CIF
Display Resolution NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576)
Recording Frame Rate NTSC: 480 fps@CIF/ PAL: 400 fps@CIF
Record Resolution NTSC: CIF (352 x 240)/PAL: CIF (352 x 288)
Record Mode Manual/ Schedule /Motion Detection/Alarm/ Motion Detection&Alarm supported
3G Mobile Support mobile phone based on Android\ iPhone\ iPad\ IOS\Symbian\Windows Mobile.
Mobile Function 1 Channel Viewer / Channel Switch / Control PTZ
Network Function IE Viewer / Live Monitoring / DVR Setting / Mobile & Email Function
Network RJ45, 10M/100M
Net Protocol IPv4, PPPOE client, DHCP client and TCP/UDP protocol supported.
Remote Access Remote Client Software and IE Browser
PTZ Control RS-485
HDD Interface SATA, Support between 250GB and 2TB
Playback Mode Normal Play, Fast Forward, Fast Rewind, Manual
Sensor/ Alarm 4-ch Sensor Inputs / 1-ch Alarm Output
USB USB Thumb Drive Backup or Upgrade / Mouse / Removable HDD
Remote Control/Mouse Included/Included
Power Supply 12V/5A DC
Power Consumption IR on Max 2000mA
Dimension 354mm (W) x 275mm (D) x 47mm (H)

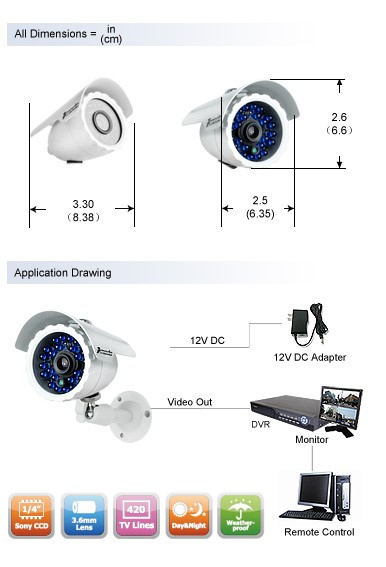

Model ZMD-CNR-BBS23NM (CM-N22623BG)-Bullet Camera
Image Sensor 1/4" Sony Color
TV System NTSC / PAL
Effective Pixels NTSC: 512 (H) x 492 (V) / PAL: 512 (H) x 582 (V)
Horizontal Resolution 420 TV-Lines
Lens 3.6mm
Number of IR LEDs 24 PCS
Infrared Illumination (Night Vision) up to 65ft (15~20m)
Minimum Illumination 0 Lux (IR On)
S/N Ratio ≥ 48dB
Video Output 1.0Vp-p, 75ohms (BNC)
Weatherproof Yes
Operating Temperature 14°F~122°F / -10°C ~50°C
Power 12V DC
Power Consumption IR on Max 200mA
Dimensions (W x D x H) 3.3" x 2.5" x 2.6"
Gross Weight 0.33 lbs
Material Metal Shell

Included With: KDH6-NARBZ8ZN-1TB

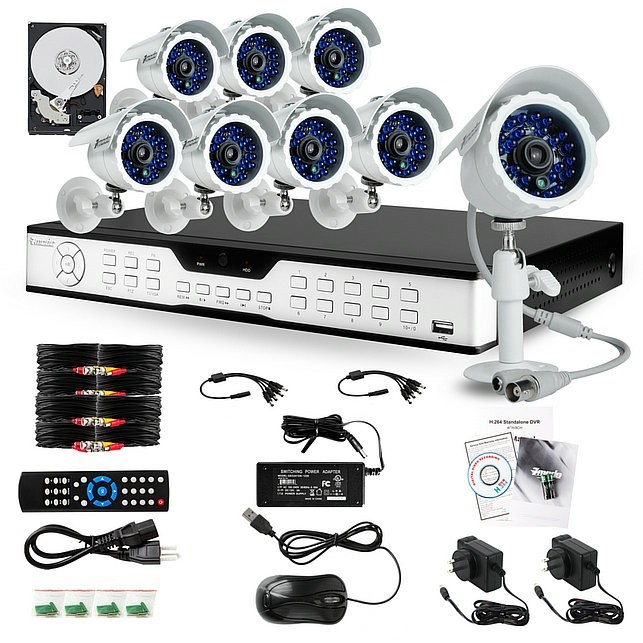

Package Includes

  • (1) ZMD-DC-SBN6 16 Channel Security DVR 1TB HD Installed
  • (8) CM-N22623BG Outdoor IR Security Cameras
  • (8) 60ft CCTV Power + Video Cables for Security Cameras
  • (2) 12V/1500mA Single Power Supply for Security Cameras
  • (2) 1-4 Splitter Cable for Security Cameras
  • (1) User's Manual
  • (1) IR Remote Control

Warranty Information

1 Year Warranty

Find Similar Products by Tag

Find Similar Products by Category

write a review

Product Reviews

  1. 16 Channel security system (KDH6-NARBZ8ZN-1TB) 5 Star Review

    Posted by on 5th Aug 2013

    Everything works like it should, I'm impressed with the recordings. This unit has the CCD cameras (8) and they work great. I'm sure all the extra goodies work fine once hooked up, too.
